Large screw-type terminal. Allows a large current rating of 30A. Banana plugs can be inserted. Number of pins: -
Connector type: Insulated terminal
Panel mounting method: Nut tightening
Lugs: Yes
Insertion hole: Yes
Knob removal: ×

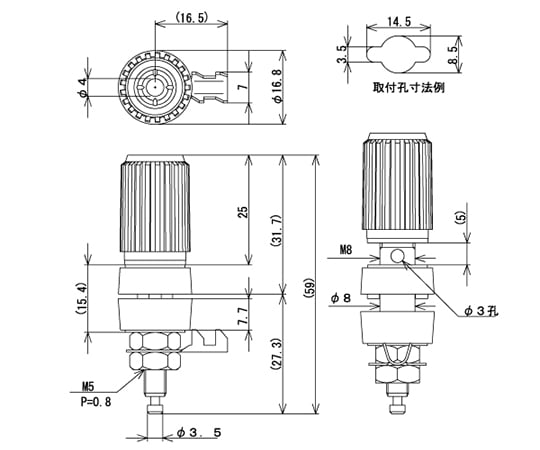

External dimensions: φ16.8
Body color: Red
Rating: 250V-30A
Withstand voltage: AC1500V (1 minute)
Insulation resistance: 100MΩ or more (DC500V)
Mounting plate thickness: -
Mounting thread pitch: -
