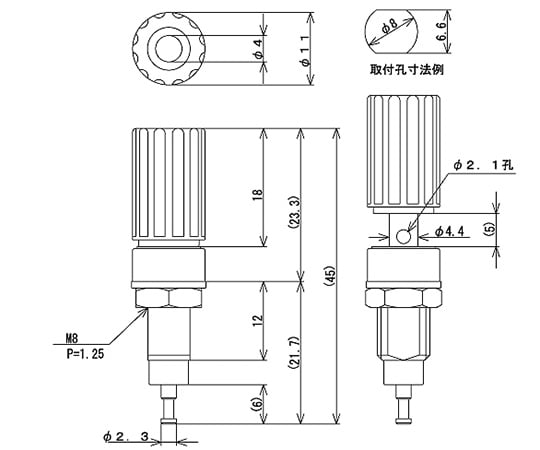

Insulated terminal 4mm Mounting hole Φ8mm Black T-3025-B 1pc
Insulated terminal 4mm Mounting hole Φ8mm Black T-3025-B 1pc
Regular price
¥561
Regular price
Sale price
¥561
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is a terminal that can accept banana plugs such as TJ-560-B. It is often used for power supplies and measuring devices. Number of pins: -
Connector type: Insulated terminal
Panel mounting method: Nut tightening
Lugs: None
Insertion hole: Yes
Knob removal: ×
External dimensions: φ11
Body color: Black
Rating: AC125V-10A
Withstand voltage: AC1000V (1 minute)
Insulation resistance: 100MΩ or more (DC500V)
Mounting plate thickness: -
Mounting thread pitch: -
