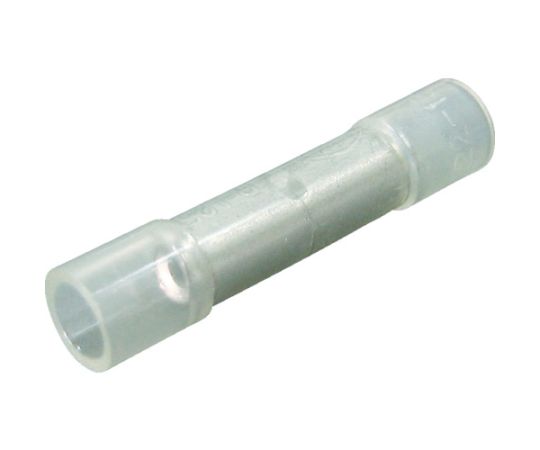

Insulated crimp sleeve for butt joints, B type (20 pieces) T-TMVB-1.25 1 pack (20 pieces)

Both sides are wide, making it easy to insert the wire. It is a combination of insulation coating for crimp sleeve butt joint. With insulation coating of B-type sleeve, wires inserted from both sides of the sleeve are butted together and crimped to connect. Wire conjugation range Stranded wire (mm2): 0.3 to 1.65 Wire clamping range: AWG: 22 to 16 Color: Transparent Total length (mm): 25.5 External dimensions (mm): 3.8 Inner dimensions (mm): 1.8 JIS standard product: × B type Suitable tools: Tools for insulated crimp terminals and sleeves Material/Finish: Sleeve/Oxygen-free copper (C1020)/Electrolytic tin plating, Insulator/PVC Country of Origin: Japan Code number: 489-4766
