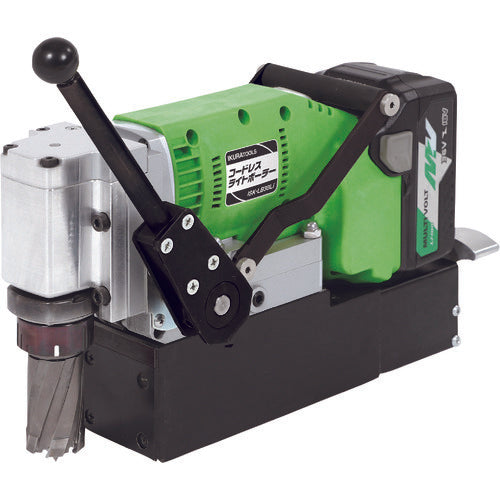

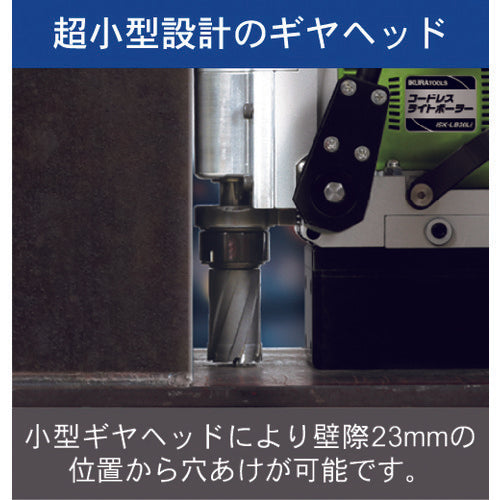

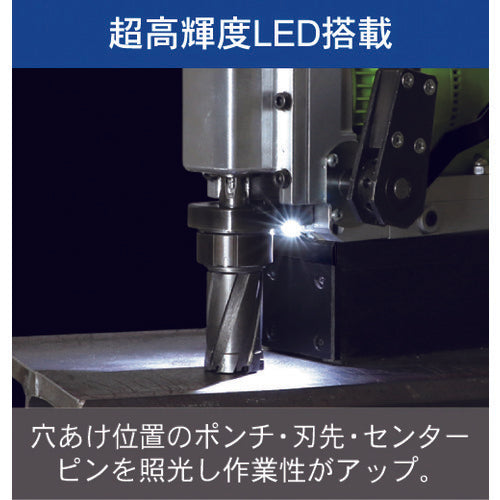

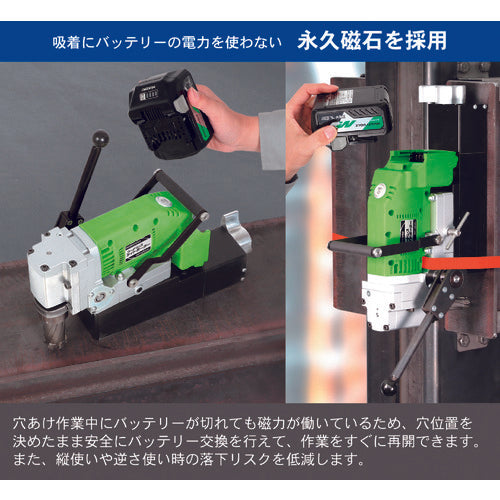

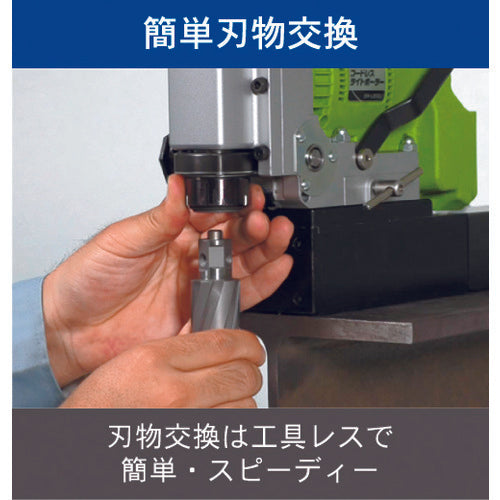

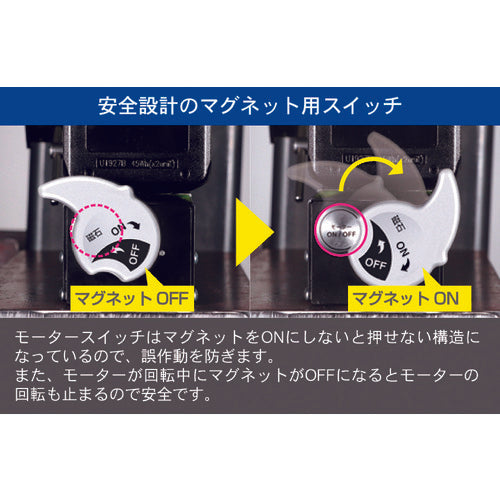

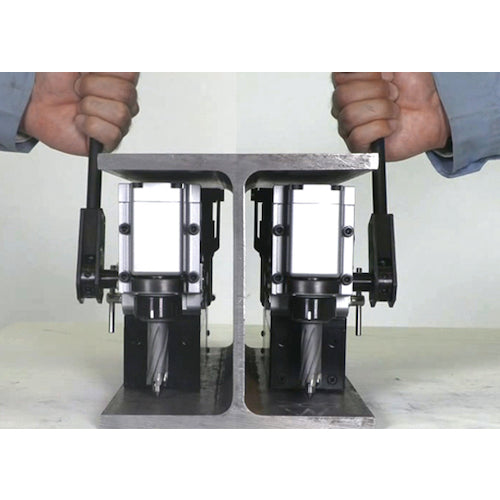

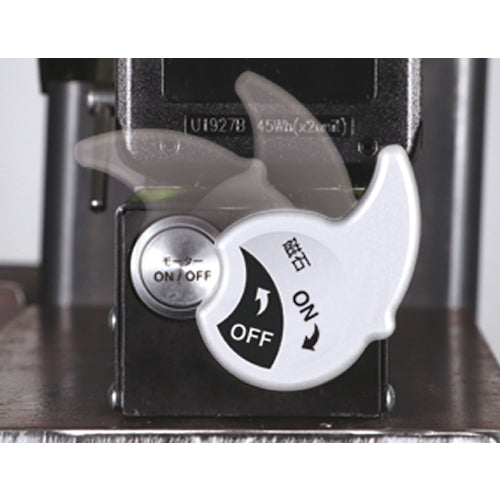

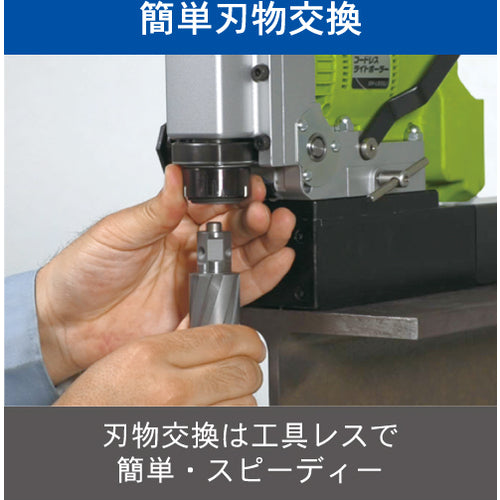

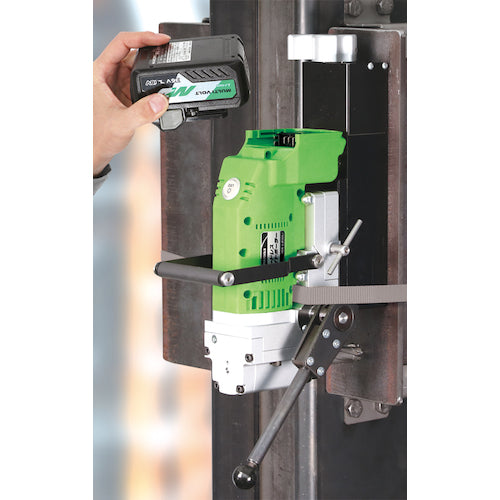

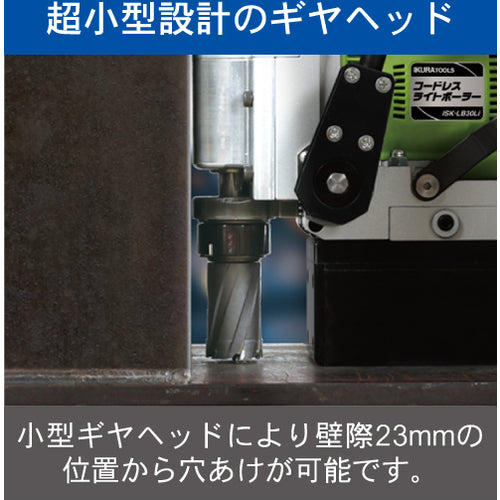

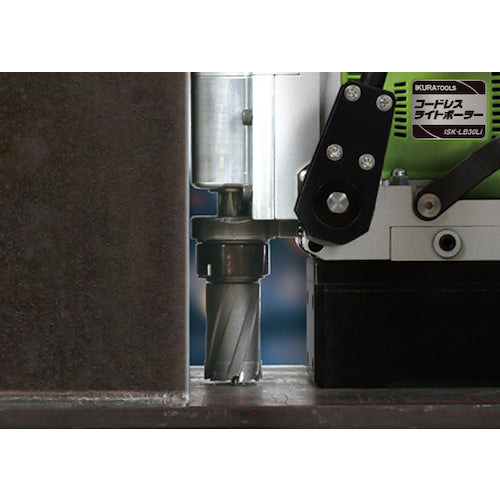

Catalog number: ISK-LB30LI Features: ● Cordless type that can be used in various work sites without needing a power source. ● Equipped with a DC36V motor. ● Ultra-lightweight at 8.8 kg. ● Adopts a permanent magnet that does not use battery power for adhesion. ● The motor switch cannot be pressed unless the magnet is turned on, preventing malfunction. ● Ultra-compact gear head allows drilling from 23 mm from the wall. ● Easy and speedy replacement without tools. ● Equipped with ultra-high brightness LED to illuminate the drilling area. ● Feed handle can be attached to the left or right. ● With a total height of 173 mm, it can process 200 mmH steel flange surfaces (inside). Applications: ● For drilling holes in steel materials during on-site work. Specifications: ●Maximum drilling capacity (mm): 30 ●Maximum plate thickness (mm): 25 ●Stroke (mm): 42 ●Minimum plate thickness (mm): 6 ●Magnet dimensions (mm): 64 x 161 ●No-load rotation speed (min-1): 580 ●Maximum magnetic force (N): 4000 ●Voltage (V): DC36 ●Capacity (Ah): 2.5 ●Drilling capacity (mm): 11.5-30 ●Approximate number of drilling times when fully charged: φ18 x t16 mm 25 holes, φ18 x t6 mm 70 holes, φ24 x t16 mm 17 holes, φ30 x t16 mm 14 holes Set contents/accessories: ●Carrying case ●Safety fixing strap ●Center pin CP-35S1 ●Spray-type cutting oil ●Charger (HiKOKI BSL36A18) ●1 battery pack ●Hexagonal wrench ●Hexagonal socket set screw
