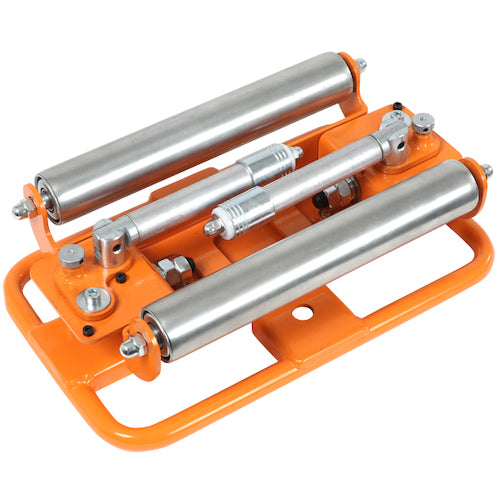

Catalog number: ISK-SR150 Features: ●Seesaw structure that easily follows the twisting of CVT cables. ●By changing the orientation of the base, it can be installed between the sub-girders of the cable rack. ●The vertical roller can be tilted, which makes it easy to insert and remove cables after extension. ●The vertical roller can be folded toward the roller side, which makes it compact when folded. ●Also, by becoming compact, it is possible to store a lot in a small space. (Height 100mm) ●The base can be shifted to fix it. ●When the vertical roller is tilted, the depth is 260mm. ●It tilts 10° on both sides. Uses: ●For cable extension. Specifications: ●Length L (mm): 192 ●Thickness T (mm): 236 ●Width W (mm): 320 ●Depth (mm): 192 ●Height (mm): 236 ●Maximum load (kN): 1.47kN ●Width (mm): 320 ●Maximum cable diameter: Φ170
