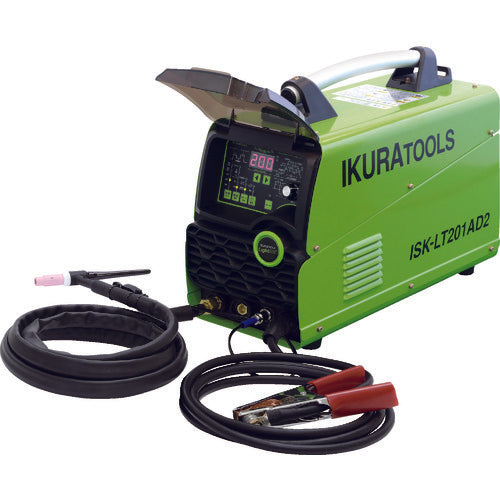

IKURA Light Tig ISK-LT201AD2 (40066) ISK-LT201AD2 1 unit

Catalog number: ISK-LT201AD2 Features: ●100V/200V compatible TIG welding machine. (Compatible with both DC and AC) ●Compatible with both DC and AC. ●Various settings can be easily made with one dial. ●Equipped with a memory function that automatically stores the settings in use and automatically loads them at startup. ●Enables uniform welding with upslope and downslope control. ●Full of manual stick welding functions such as arc force function, arc start function, adhesion prevention function, and electric shock prevention function. Applications: ●For welding various materials and plate thicknesses such as iron, stainless steel, and aluminum. Specifications: ● Welding rod diameter (mm): 1.6-3.2 (TIG welding rod 200V) ● Rated input (kVA) (100V/200V) TIG DC: 1.6/5.6 ● Rated input (kVA) (100V/200V) TIG AC: 1.6/5.6 ● Rated input (kVA) (100V/200V) Manual stick welding: 2.6/6.0 ● Current range (A) (100V/200V) TIG DC: 5-100/5-200 ● Current range (A) (100V/200V )TIG AC: 5-100/5-200●Current range (A) (100V/200V) Manual stick welding: 10-80/10-130●Utilization rate (%)TIG welding (100/200V): 100/30●Utilization rate (%)Manual stick welding (100/200V): 30/30●Input voltage (V): Single phase 100/200●Power cord length (m): 3●Rated input (kVA)TIG DC: 1.6/5.6●Rated input (kVA)TIG AC: 1.6/5.6● Rated input (kVA) manual stick welding: 2.6/6.0 ● Current range (A) manual stick welding: 10-80/10-130 ● Current range (A) TIG AC: 5-100/5-200 ● Current range (A) TIG DC: 5-100/5-200 ● Compatible with 100V/200V ● DC/AC TIG welding ● Rated output current: 200A at 200V, 100A at 100V ● No-load voltage: 70V ● Rated usage rate: 30% (100%) ● Pre-flow/post-flow: 0- 0.5 seconds/0 to 20.0 seconds, up/down slope: 0 to 15.0 seconds●Initial current setting・Welding current・Crater current・Pulse welding current・Pulse base current: 5 to 200A (5 to 100A) *15A or more in AC welding mode●Pulse width: 1 to 99%, Pulse frequency: 0.2 to 500Hz *0.2 to 20Hz in AC welding mode●Cooling width: -25 to 10%, Cooling range: -20 to 20%●AC frequency: 50 to 100Hz Set contents/accessories: ● Torch cable 8m ● Input cable 3m (3-core 3.5sq) ● Cable with earth clip 3m ● Argon regulator (hose 3m) ● Tungsten electrodes φ2.4 x 2 ● Collet bodies x 2 (φ2.4, φ3.2) ● Collet chucks x 4 (φ1.6, φ2.0, φ2.4, φ3.2) ● Nozzles x 4 (No. 4, No. 5, No. 6, No. 7) ● Long cap x 1, short cap x 1 ● Insulating cover x 1
