育良精機(株)

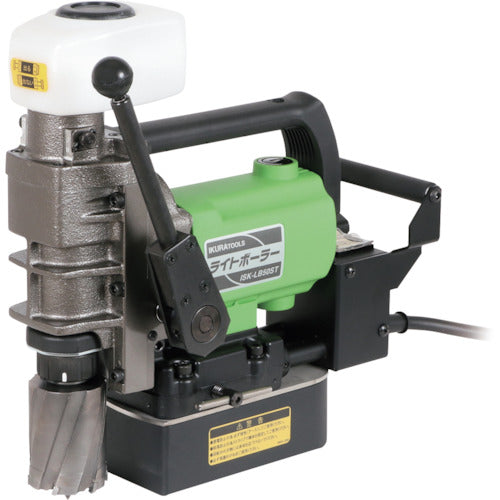

IKURA Light Bowler (50170) ISK-LB50ST 1 unit
IKURA Light Bowler (50170) ISK-LB50ST 1 unit
Regular price
¥277,200
Regular price
Sale price
¥277,200
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

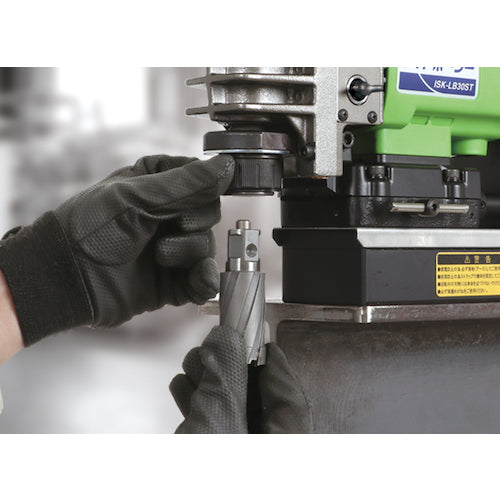

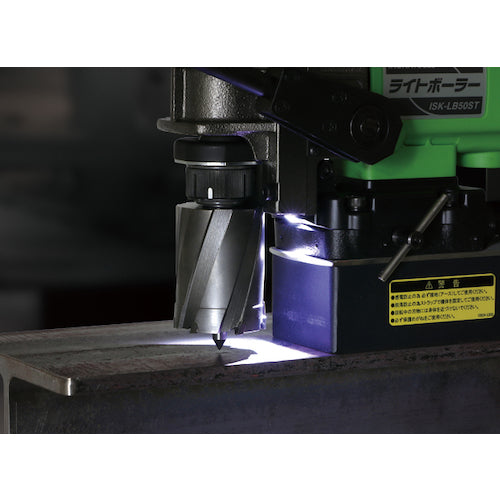

Catalog number: ISK-LB50ST Features: ●Blades can be replaced without tools, further improving work efficiency. ●Equipped with a powerful motor, it is compact and ultra-lightweight, but can drill large diameter and heavy cutting holes (maximum hole diameter 50 mm, maximum plate thickness 50 mm). ●Equipped with an independent high-brightness LED, the punch, cutting edge, and center pin are easy to see even in dark places. ●The automatic cutting oil dripping device automatically drips the appropriate amount in conjunction with the movement of the handle. ●The swing head allows fine adjustment of the drilling position even after the magnet is fixed (movable 40 mm left and right, 20 mm forward and backward). ●By using the dedicated nos-type drill, hole diameters from 8 mm can be processed. Specifications: ● Maximum drilling capacity (mm): 50 ● Maximum plate thickness (mm): 50 ● Stroke (mm): 66 ● Power supply (V): 100 ● Power cord length (m): 3 ● Minimum plate thickness (mm): 6 ● Magnet dimensions (mm): 160 x 70 ● No-load speed (min-1): 550 ● Maximum magnetic force (N): 6.4 ● Voltage (V): 100 ● Drilling capacity (mm): 8-50 ● Power consumption (W): 850 Set contents/accessories: ● Steel carrying case ● Safety fixing strap ● Center pin (CP-50S1) for depths of 6-50 mm ● Water-soluble cutting oil (400cc)
