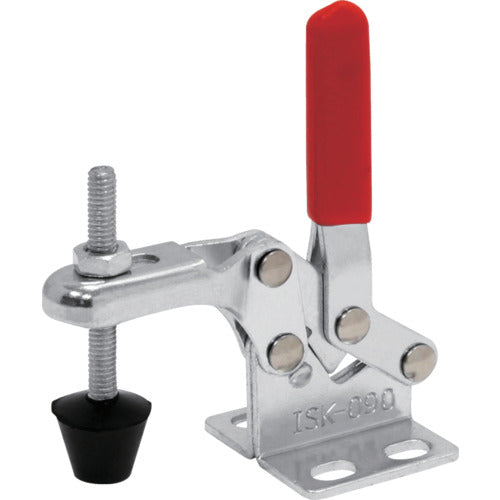

Ikura Downward-pressing toggle clamp Stainless steel Vertical handle (31311) Clamp arm travel angle 80° Flange base Clamping force 0.3 kN ISK-090-2S 1 pc

Catalog number: ISK-090-2S Features: ●Ideal for welding jigs, assembly jigs, inspection jigs, and processing jigs. Specifications: ●Total length (mm): 72.5 ●Attached bolt diameter: M4 x 30 (SUS) ●Clamp arm movement angle (°): 80 ●Handle operation angle (°): 88 ●Tightening force (kN): 0.3 ●Downward pressing type ●Vertical handle ●Flange base Material/Finish: ●Stainless steel ●Screw tip rubber: Nitrile rubber Note: ●2S is a stainless steel type.
