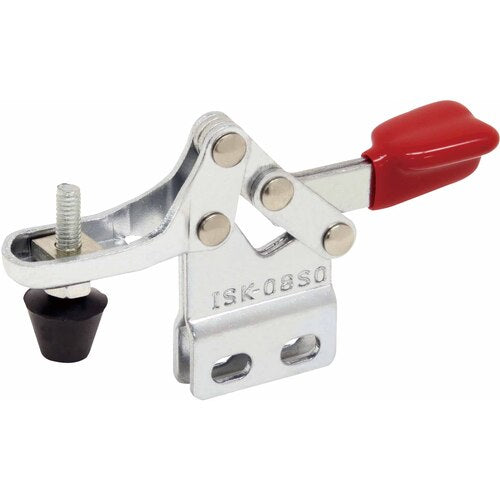

Ikura Downward-pressing toggle clamp Stainless steel Horizontal handle (31110) Clamp arm movement angle 95° Straight base Clamping force 0.3 kN ISK-08S0-2S 1 pc

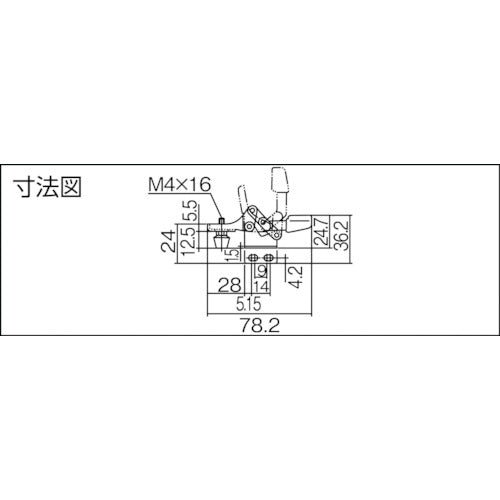

Catalog number: ISK-08S0-2S Features: ●Ideal for welding jigs, assembly jigs, inspection jigs, and processing jigs. Specifications: ●Total length (mm): 78.2 ●Attached bolt diameter: M4 x 16 (SUS) ●Clamp arm movement angle (°): 95 ●Handle operation angle (°): 110 ●Tightening force (kN): 0.3 ●Downward pressing type ●Horizontal handle ●Straight base Material/Finish: ●Stainless steel ●Screw tip rubber: Nitrile rubber Note: ●2S is a stainless steel type.
