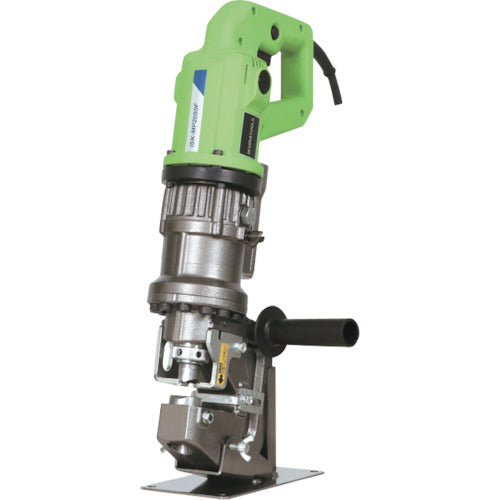

IKURA HYBRID double-acting hydraulic puncher (50160) ISK-MP2050F 1 unit

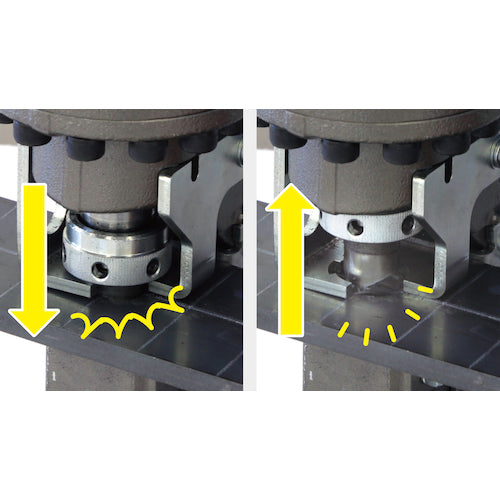

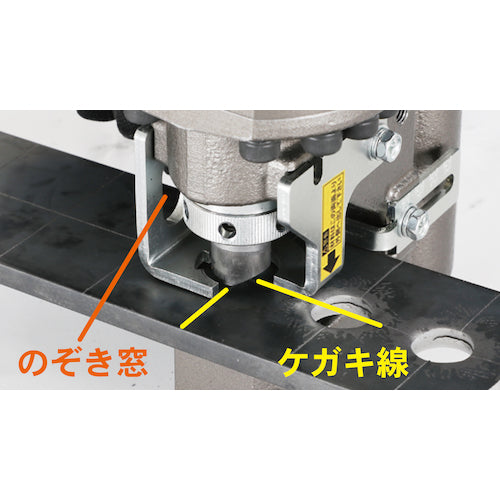

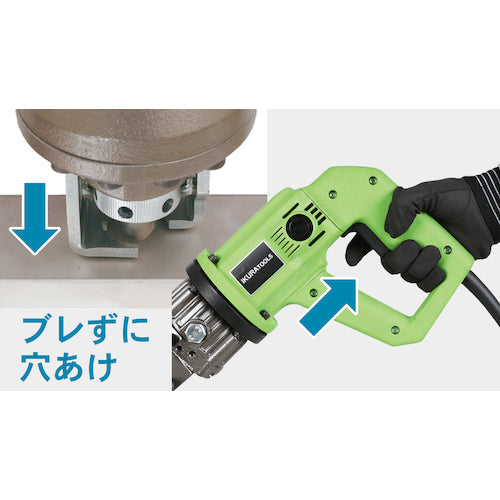

Catalog number: ISK-MP2050F Features: ● Equipped with an original hydraulic motor with speed control, which is the first in the industry. The motor speed can be adjusted by pulling the switch, making it easy to match the punching position. ● Hybrid fully double-acting AC100V power supply specification. ● Adopts an original hydraulic motor with speed control switch, which is the first in the industry. The motor speed can be adjusted by pulling the switch (trigger), allowing you to drill holes without shaking. ● The head angle can be adjusted to three levels according to the situation on site. ● Normally, it returns with the force of the spring, so it is speedy and energy-saving. ● When biting, it returns with hydraulic pressure, so it is smooth and stress-free. ● Adopts a new stop plate with a quick guide, making alignment quick and easy. ● It is easy to match the marking line. ● The motor part can rotate 360° even under load. ● It is easy to work with drilling from any angle. Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ20 ● Maximum drilling capacity (mm) Iron: t9 x φ20 ● Pocket size (mm): 50 ● Power cord length (m): 2.7 ● Maximum drilling capacity (mm) Iron (equivalent to SS400): 9 ● Hole diameter (mm): 20 ● Motor (kW): 0.8 ● Power supply (50/60Hz) (V): 100 ● Power supply: AC100V ● Hole shape: Round/Slotted hole Set contents/Accessories: ● Punch and die set (14F) (L11F only for MP15F) ● Side handle ● Work stand
