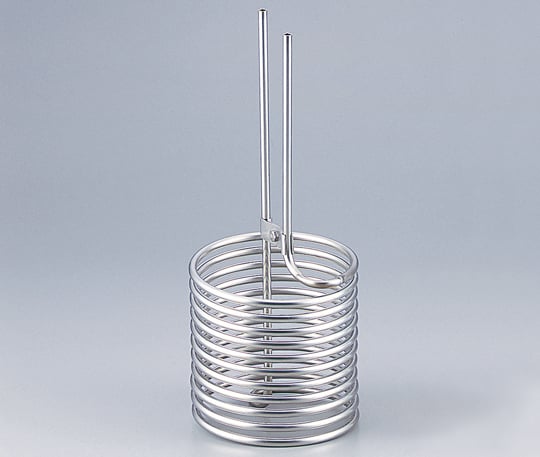

Self-supporting coil heat exchanger (stainless steel) JC-S1 1 piece

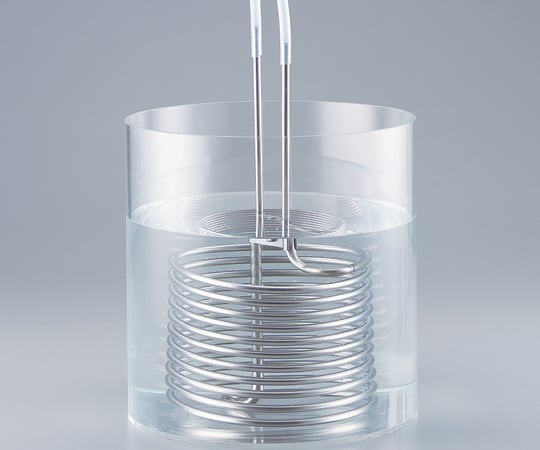

It is self-supporting in a 10-20L vat of liquid, and water, hot water, steam, etc. are pumped through the coiled tube to cool or heat it. It stands upright in the container and exchanges heat. Size: Total height: 400mm, coil diameter: 150mm Heat transfer area: 0.1m2 Material: Stainless steel (SUS304) Coil diameter: Inner diameter/φ6mm, outer diameter/φ8mm Coil height: 115mm Coil length: 4.1m Volumes: 7 *The number of turns can be changed by special order. Please contact us.
