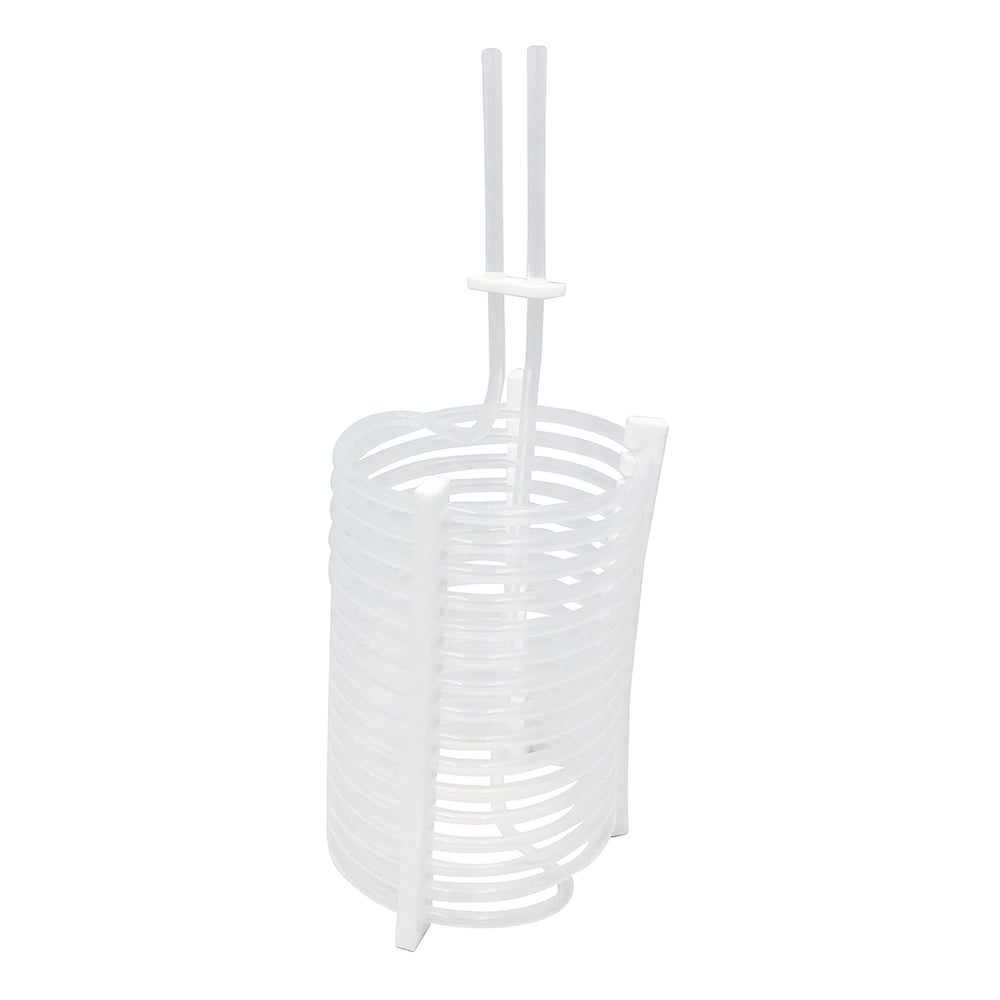

Self-supporting coil heat exchanger (fluororesin) JC-T3 1 piece

It is self-supporting in a 10-20L vat of liquid, and water, hot water, steam, etc. are pumped through the coiled tube to cool or heat it. Made of fluororesin, it has excellent chemical resistance. Model number: JC-T3 Size: Total height: 400mm, coil diameter: 150mm Heat transfer area: 0.20m2 Material: Fluoride resin Coil diameter: Inner diameter/φ6mm, outer diameter/φ8mm Coil height: 225mm Coil length: 7.9m Volume: 15.5
