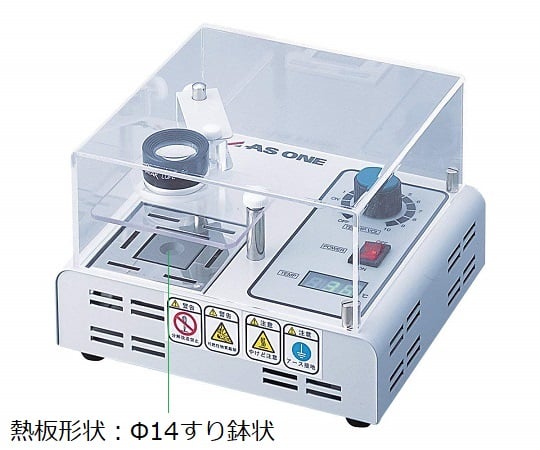

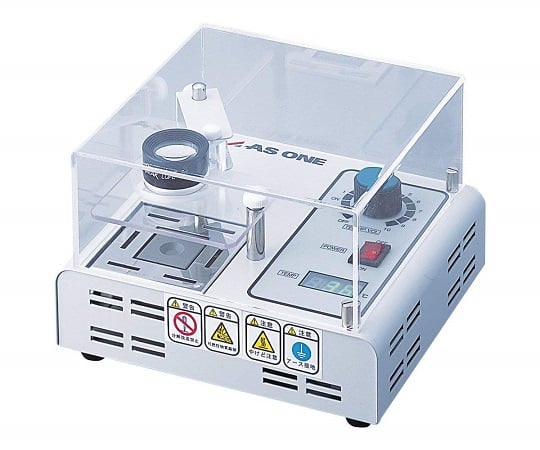

Melting point measuring instrument ATM-01 1 unit

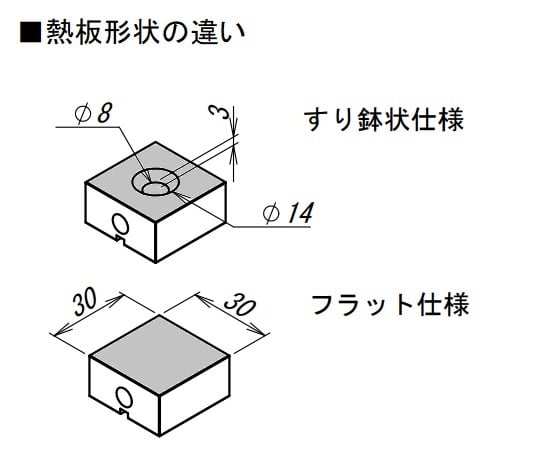

The melting point and softening point of compounds, resins, waxes, etc. can be easily measured. The temperature is displayed digitally for easy viewing. Equipped with an overheat prevention function. The heating plate is Teflon® coated, so it is stain-resistant. Heating plate shape: Φ14 mortar shape Size(mm):190×170×122 Heating plate: Aluminum block (Teflon® coating) Heater capacity: Cartridge heater (120V x 60W x 1) Measurement temperature range: Room temperature to 300°C Temperature display: Digital display (1°C increments) Temperature sensor: Pt resistance thermometer Temperature control: Thyristor voltage control method Visual loupe: Steinheil loupe, 5x magnification Casing: Steel plate, baked finish Cover: PMMA (acrylic) Power supply: AC100V 50/60Hz Product weight: 2.2kg Power cord: 1.5m (3P plug) *Cover glass is not included.
