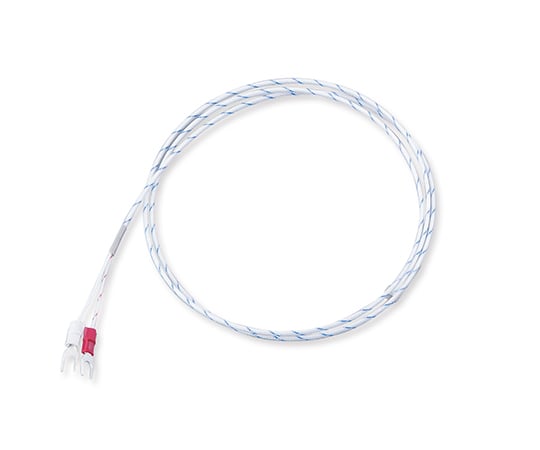

Insulated thermocouple (duplex) Glass-insulated Y terminal 5m DT-K-5m 1 piece

K thermocouple glass-clad type Even if you cut it to the required length, you can use it immediately by twisting the ends together or welding them together. It can be connected to terminal block type recorders, displays, portable thermometers, and data loggers. *The sensor connection part is a Y terminal. Coating material: Glass coating Specifications: Crimped Y terminal Y terminal size: outer 6.4mm x inner 4.3mm Heat resistance: 250℃ Wire diameter: φ0.32mm (finished outer diameter of coated part: 1.4 x 2.3mm) Lead wire (coated part) length: 5m Code number: 8970-42
