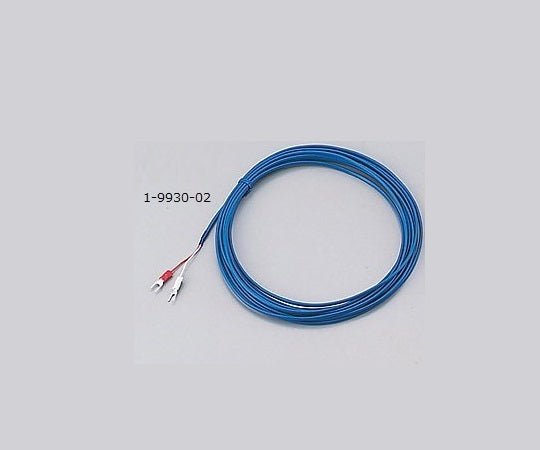

Insulated thermocouple (duplex) Fluorine resin/FEP coated Y terminal 5m DJ-K-BL-5m 1 piece

Fluorine resin coated type of K thermocouple Even if you cut it to the required length, you can use it immediately by twisting the ends together or welding them together. It can be connected to terminal block type recorders, displays, portable thermometers, and data loggers. *The sensor connection part is a Y terminal. Coating material: Fluorine resin, FEP Specifications: Crimped Y terminal Y terminal size: outer 6.4mm x inner 4.3mm Heat resistance: -250 to 200°C Wire diameter: φ0.32mm (finished outer diameter of coated part: 2.1 x 3.2mm) Lead wire (coated part) length: 5m Code number: 8970-10
