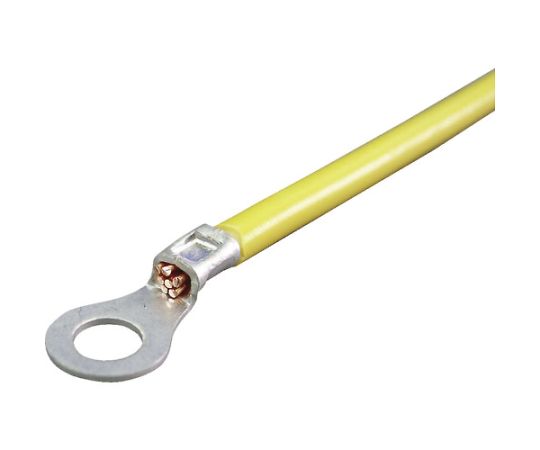

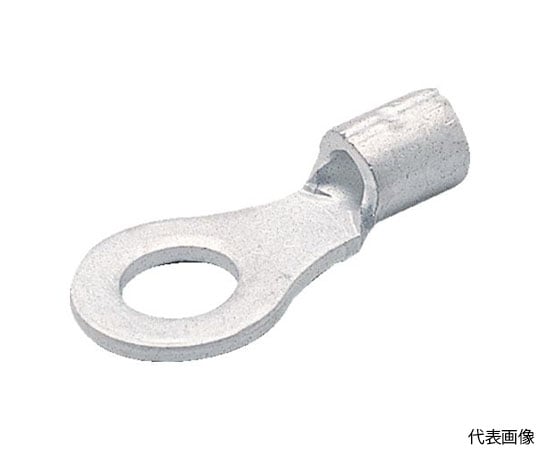

This is a bare crimp terminal with a round contact surface (tongue) and mounting holes for screw fixing.
Used to connect soft copper stranded wire or solid wire. Wire conjugation range Solid wire (mm): 1.82 to 2.40
Wire conjugation range Stranded wire (mm2): 2.63 to 4.60
Wire clamping range AWG: 12

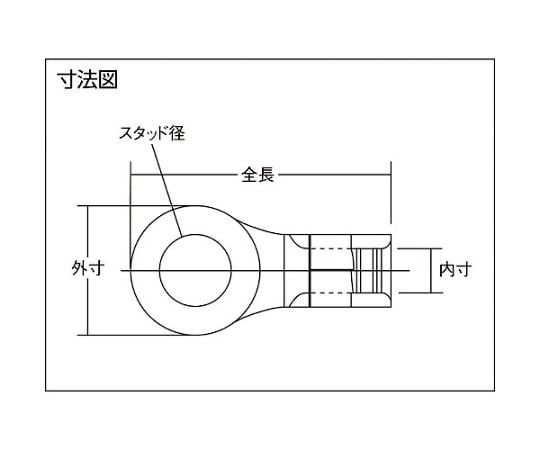

External dimensions (mm): 9.6
Stud diameter (mm): 5.3
Total length (mm): 20
Inner dimensions (mm): 3
JIS standard product: ×
Color: Silver
Wire conjugation range Single wire mm: 1.82 to 2.40
Round/single wire type
Material/Finish: Oxygen-free copper (C1020)/Electrolytic tin plating
Country of Origin: Japan
Code number: 255-7444
