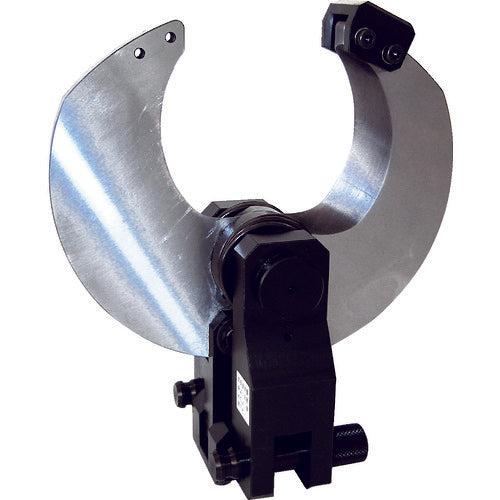

Nishida Cable Cutter Head NC-M-A54A 1 piece

Catalog number: NC-M-A54A Features: ● Uses a crab-claw system that is easy to work with. ● Can be used for multi-power tool charging, electric, and hydraulic pumps. Specifications: ● Width (mm): 159 ● Depth (mm): 83 ● Height (mm): 185 ● Compatible main body: Lilium, Auxy, Arbile, Abel ● Capacity (kg): 6600V-CVT → 60 [MM2] 3-core (up to φ50) ● Cutting capacity: 600V-IV (500mm2 (diameter 35)), 600V-CV (200mm2 (diameter 54)), 600V-CVT (200mm2 (diameter 55)) ● Capacity: 6600V-CVT → 60 [MM2] 3-core (φ 50)●Capacity: 600V-CV → 500 [MM2] single core (up to φ38), 200 [MM2] 3 core (up to φ54)●Capacity: 600V-CVT → 200 [MM2] 3 core (up to φ55)●Capacity: 600V-IV → 500 [MM2] (up to φ35)●Capacity: 600V-VVR → 200 [MM2] 3 core (up to φ53)●Capacity: 6600V-CV → 500 [MM2] single core (up to φ43), 60 [MM2] 3 core (up to φ46)●Capacity: 6600V-CVT → 60 [MM2] 3 core (up to φ50) Set contents / accessories: ● Steel case Caution: ● Do not work with live wires as it is dangerous. ● Cannot cut special wires such as soft copper, aluminum twisted wire, ACSR wire, and iron wire (piano wire). When cutting inappropriate wires, such as those with a stranded wire diameter of φ1mm or less, it may not be possible to cut them completely.
