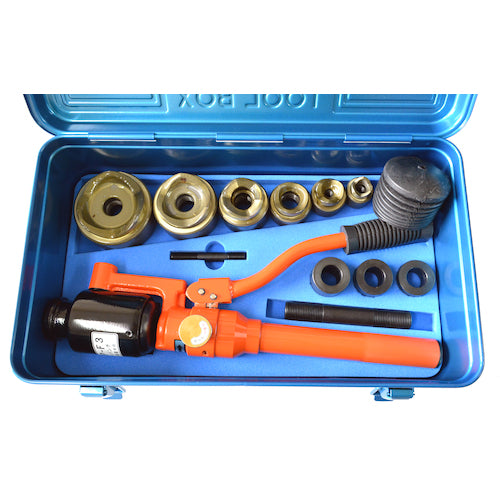

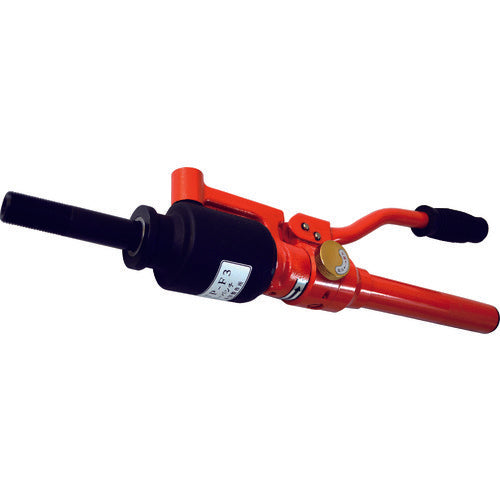

Nishida Free Punch Thin Steel Blade Set NC-TP-F3-CP 1 unit

Catalog number: NC-TP-F3-CP Features: ●The pump and cylinder are integrated, and the head rotates 360°. (Patented) Specifications: ●Maximum drilling capacity (mm): t3.2 x φ64.5 ●Output load (kN): 73 ●Compatible replacement blades: TP-CP19 to CP75, TP-ACP16 to ACP104 ●Set contents: Main unit, 6 thin steel pipe blades (CP19 to 63) ●Maximum plate thickness (mm): 3.2 ●Maximum drilling capacity: CP63 x 3.2t (SS400) CP75 x 3.2t (SS400) ACP104 x 3.2t (SS400) CP75 x 1.5t (SUS304) *If the material is SUS304, the plate thickness (t) will be 1/2. ●Output load: 73kN●Drilling capacity (hole size) (mm): 115.5 x 3.2t Set contents/accessories: ●F large shaft ●Small shaft ●Large, medium and small color ●Safety cap ●Case
