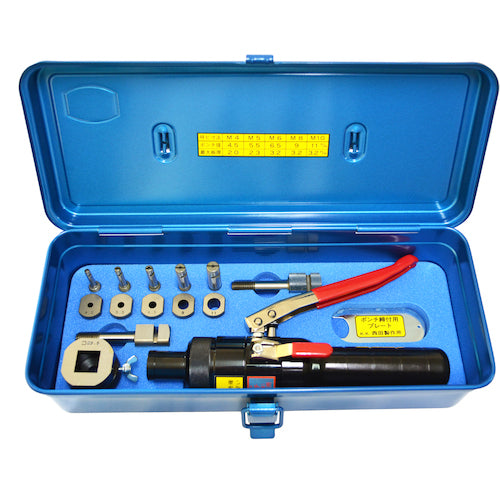

Nishida Hydraulic Pitching Punch NC-PM-K10A 1 unit

Catalog number: NC-PM-K10A Features: ● An original tool that can cut out (notch) pilot holes without the need for a file. ● Plate thickness varies depending on the size of the punch set. ● Can be used for a wide range of purposes, including factory processing, rework, and prototype development. Applications: ● Turning round pilot holes in electrical control boxes, cable ducts, etc. into square holes (switch holes). Specifications: ●Maximum drilling capacity (mm): t3.2 x φ11 ●Output load (kN): 28.3 ●Width (mm): 61 ●Depth (mm): 271 ●Drilling capacity (mm): 3.2 ●Maximum cutting capacity (mm): t3.2 x Φ11 ●Maximum plate thickness (mm): cross cut 16.8 x thickness 2.3 ●Output load: 28.3kN Set contents/accessories: ●23.5mm corner cutting punch/16.8mm cross cutting die x 1 ●Long hole punch/die x 5 ●Screw tightening plate x 1 Note: ●SUS material cannot be used.
