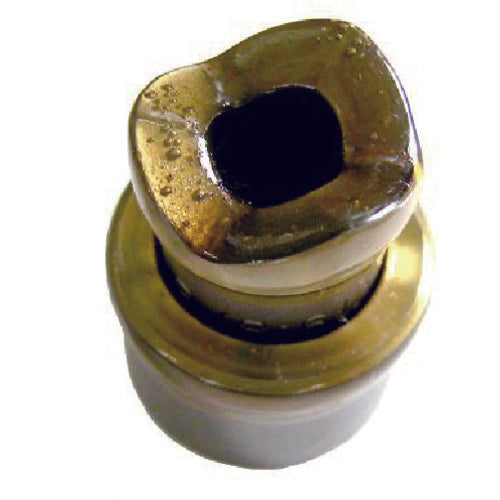

Nishida TP thin steel blade φ19.8 TP-CP19 1 set

Catalog number: TP-CP19 Features: ●Since it punches through steel plate, no cutting chips are scattered. Applications: ●Drilling holes for electrical conduits in distribution boards and switchboards. Specifications: ●Compatible models: NC-TP-F3, TP-1A, NC-EF36X ●Hole diameter (mm): 19.8 ●Shaft used: Small shaft (φ10) ●Product name: CP19 ●For thin steel electrical conduits ●Maximum plate thickness: 3.2mm (SS400), 1.6mm (SUS) Set contents/accessories: ●Die and punch (upper blade and lower blade) Caution: ●Cannot be used with hot-dip galvanized or electro-galvanized materials.
