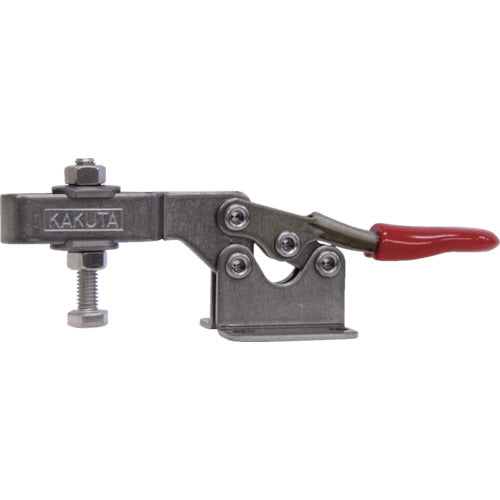

Kakuta Stainless Steel Handle Horizontal Toggle Clamp No. HH350-2S KC-HH350-2S 1 pc

Catalog number: KC-HH350-2S Features: ●The clamp arm opens 90°. Specifications: ●Total length (mm): 140 ●Tightening force (kN): 0.9 ●Attached bolt diameter: M6×37 (RBT-6-SUS) ●Clamp arm movement angle (°): 90 ●Handle operation angle (°): 60 ●Product marking: HH350-2S ●Downward pressing type ●Horizontal handle type ●Flange base Material/Finish: ●Steel (SPCC) ●Screw tip rubber: Nitrile rubber Caution: ●2S is stainless steel (SUS304). ●The indicated tightening force is a guideline. ●The tightening force becomes weaker toward the tip of the clamp arm. ●Please note that impact, vibration, and internal pressure may cause damage. ●Be careful not to pinch your hand.
