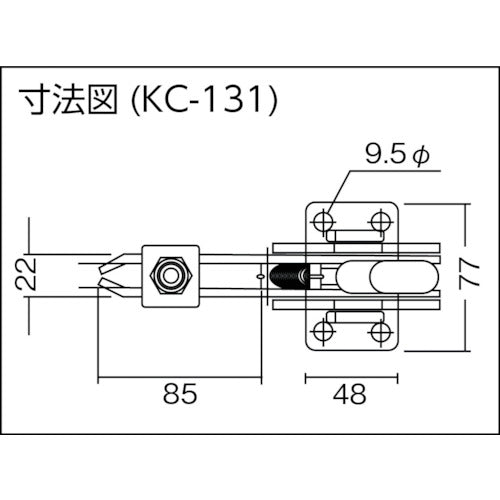

Kakuta Toggle Clamp (Downward Pressing Type) Cam Clamp No. 131 Clamping Pressure 3.5kN KC-131 1 pc

Catalogue number: KC-131 Features: ●One-touch operation, no adjustment required. Even for workpieces with a large variation of ±1.5 mm, a constant pressure is applied without adjusting the pressure bolt. Specifications: ●Total length (mm): 275 ●Tightening pressure (kN): 3.5 ●Attached bolt diameter: M12 x 75 ●Clamp arm movement angle (°): 85 ●Handle operation angle (°): 170 ●Installation method: Flange base ●Product marking: No. 131 ●Downward pressing type ●Flange base Material/Finish: ●Steel (SPCC)
