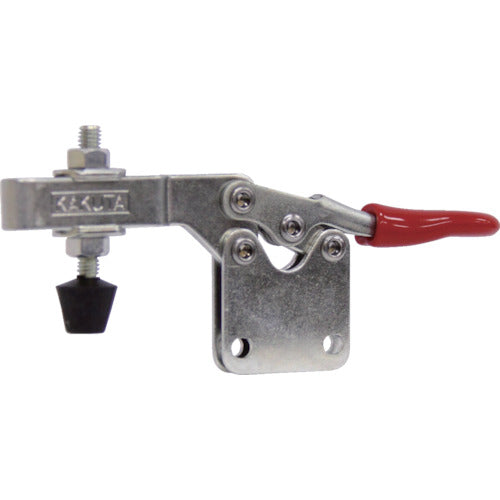

Kakuta Horizontal Handle Toggle Clamp (Downward Pressing Type) No. HH351B Clamping Pressure 0.9kN KC-HH351B 1 pc

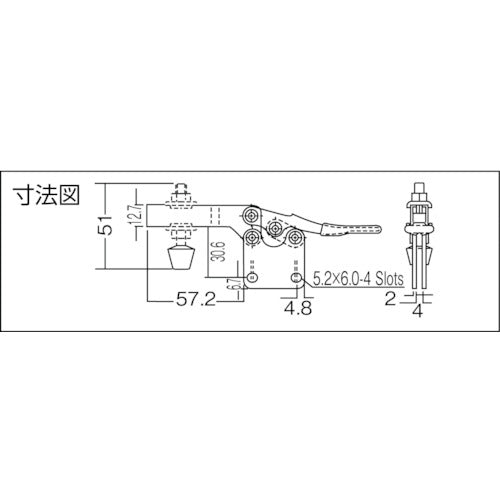

Catalog number: KC-HH351B Features: ● Straight base type. Specifications: ● Total length (mm): 140 ● Clamping force (kN): 0.9 ● Attached bolt diameter: M6 x 37 (RBT-6) ● Clamp arm movement angle (°): 90 ● Handle operation angle (°): 60 ● Product mark: HH351-B ● Summary: △ ● Clamping force (kn): 0.9 ● Downward pressing type ● Horizontal handle type ● Straight base Material / Finish: ● Steel (SPCC) ● Screw tip rubber: Nitrile rubber Set contents / Accessories: ● M6 x 37 Bolt with rubber (RBT-6) ● 2 nuts ● 2 washers Caution: ● The indicated clamping force is a guide. ● The clamping force becomes weaker toward the tip of the clamp arm. ● Please note that impact, vibration, and internal pressure may cause damage. ● Be careful not to pinch your hand.
