Kakuta Horizontal Handle Toggle Clamp No. 08 KC-08 1 pc

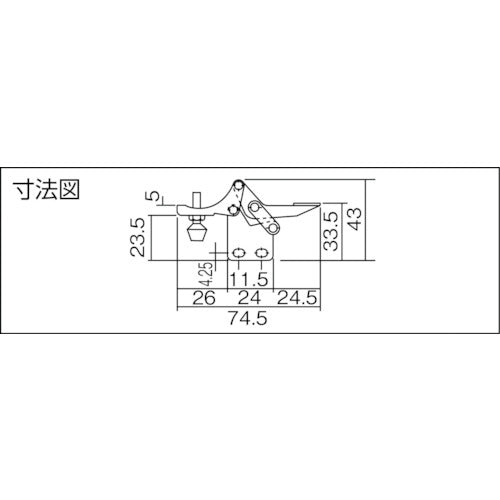

Catalog number: KC-08 Features: ● All-metal type with no plastic cover on the handle. ● Type with no plastic cover on the handle. Specifications: ● Total length (mm): 76 ● Clamping force (kN): 0.3 ● Attached bolt diameter: M4 x 13 (RBT-4S) ● Clamp arm movement angle (°): 105 ● Handle operation angle (°): 88 ● Product marking: No. 08 ● Downward pressing type ● Horizontal handle type ● Flange base Material/Finish: ● Steel (SPCC) ● Screw tip rubber: Nitrile rubber Caution: ● 2S is stainless steel (SUS304). ● Clamping force is weaker toward the tip of the clamp arm. ● Please note that impact and vibration internal pressure may cause damage. ● Be careful not to pinch your hand.
