Kakuta Horizontal Handle Toggle Clamp No. 38D KC-38D 1 pc

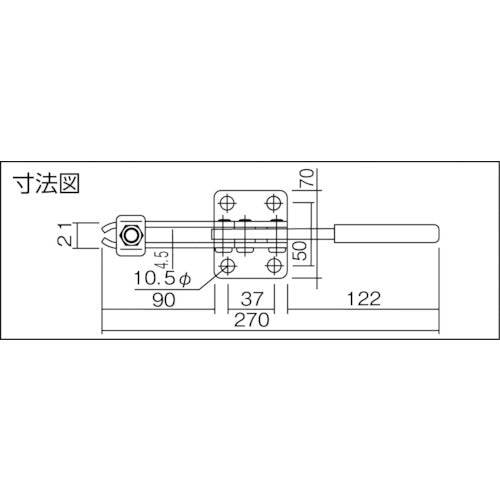

Catalog number: KC-38D Features: ● A clamp with a good balance between clamping force and size. ● Comes with a release lever. Specifications: ● Overall length (mm): 268 ● Clamping force (kN): 5.0 ● Attached bolt diameter: M10 x 65 ● Clamp arm movement angle (°): 65 ● Handle operation angle (°): 85 ● Product marking: No. 38D ● Downward pressing type ● Horizontal handle type ● Flange base Material/Finish: ● Steel (SPCC) Caution: ● The indicated clamping force is a guideline. ● The clamping force is weaker towards the tip of the clamp arm. ● Please note that impact and vibration internal pressure may cause damage. ● Be careful not to get your hand caught.
