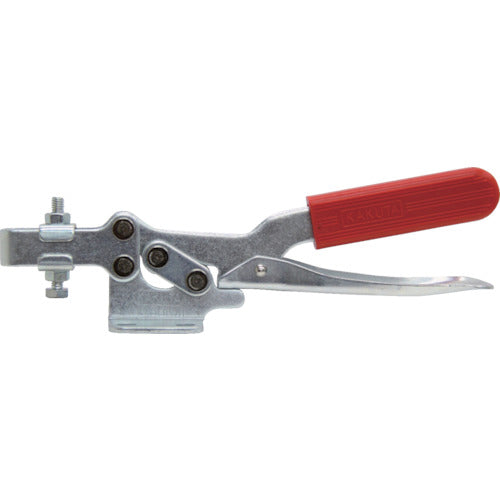

Kakuta Horizontal Handle Toggle Clamp No. 38K Small KC-38K-S 1 pc

Catalogue number: KC-38K-S Features: ●Comes with a release lever. ●A clamp with a good balance between clamping force and size. Specifications: ●Total length (mm): 218 ●Tightening force (kN): 2.8 ●Attached bolt diameter: M6 x 40 ●Clamp arm movement angle (°): 90 ●Handle operation angle (°): 90 ●Product marking: No. 38K small ●Downward pressure type ●Horizontal handle type ●Flange base Material/Finish: ●Steel (SPCC) Caution: ●The indicated clamping force is a guideline ●The clamping force becomes weaker toward the tip of the clamp arm ●Please note that impact, vibration, and internal pressure may cause damage ●Be careful not to get your hand caught
