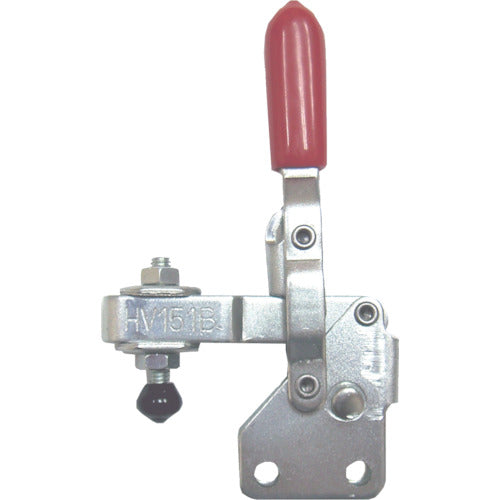

Kakuta Handle Vertical Toggle Clamp (Downward Pressing Type) No. HV151B Clamping Pressure 0.45kN KC-HV151B 1 pc

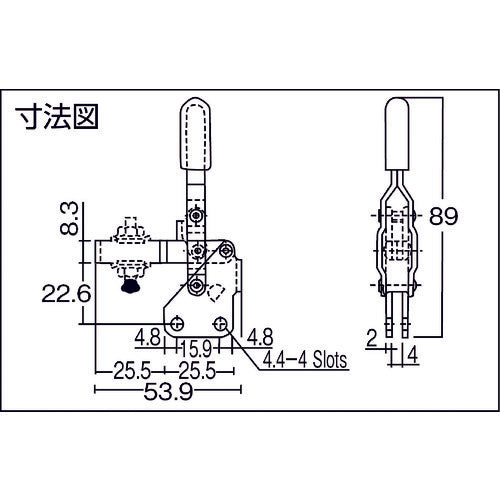

Catalog number: KC-HV151B Features: ● Straight base type. ● Uses nylon-finished bolts. Specifications: ● Total length (mm): 90 ● Tightening force (kN): 0.45 ● Attached bolt diameter: M4 x 28 (nylon-finished bolts) ● Clamp arm movement angle (°): 105 ● Handle operation angle (°): 60 ● Product marking: HV151B ● Mounting pitch (mm): 15.9 ● Total height (mm): 89 ● Summary: △ ● Tightening force (kn): 0.45 ● Downward pressing type ● Vertical handle type ● Straight base Material/Finish: ● Steel (SPCC) Set contents/Accessories: ● M4 x 28 nylon-finished bolts ● 2 nuts ● 2 washers Caution: ● -2S is a hexagonal SUS bolt. ● The indicated tightening force is a guideline. ● The tightening force becomes weaker toward the tip of the clamp arm. ● Please note that impact, vibration, and internal pressure may cause damage. ● Be careful not to pinch your hand.
