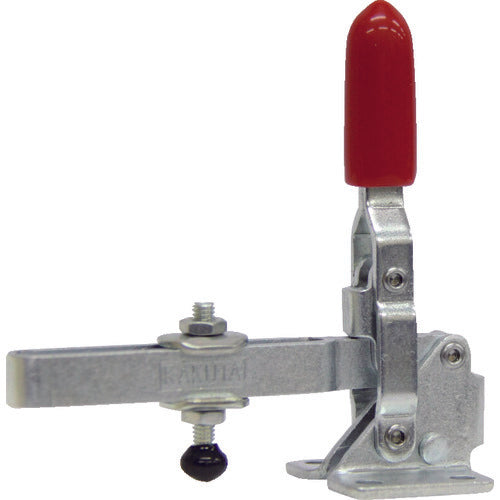

Kakuta Handle Vertical Toggle Clamp (Downward Pressing Type) No. HV153-XL Clamping Pressure 0.19-0.45kN KC-HV153-XL 1 pc

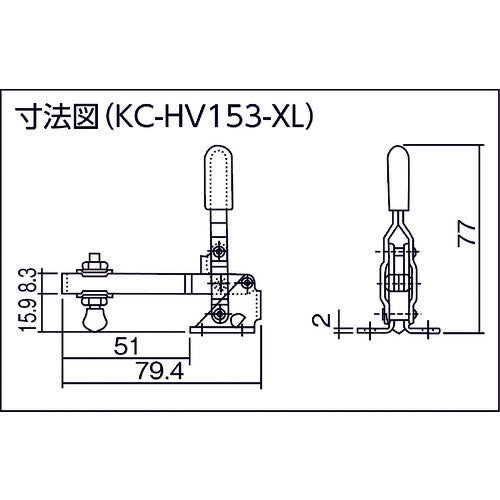

Catalog number: KC-HV153-XL Features: ●Long arm type. Specifications: ●Total length (mm): 78 ●Tightening pressure (kN): 0.19-0.45 ●Attached bolt diameter: M4×28 (nylon bolted) ●Clamp arm movement angle (°): 105 ●Handle operation angle (°): 60 ●Product marking: NO.HV153-XL ●Mounting pitch (mm): 15.9 ●Total height (mm): 77 ●Tightening pressure (kn): 0.19-0.45 ●Downward pressing type ●Vertical handle ●Flange base Material/Finish: ●Steel (SPCC) Set contents/Accessories: ●M4×28 nylon bolted ●2 nuts ●2 washers Caution: ●The indicated tightening pressure is a guideline. ●The indicated tightening pressure is a guideline. ●The tightening pressure becomes weaker toward the tip of the clamp arm. ●Please note that impact, vibration, and internal pressure may cause damage.
