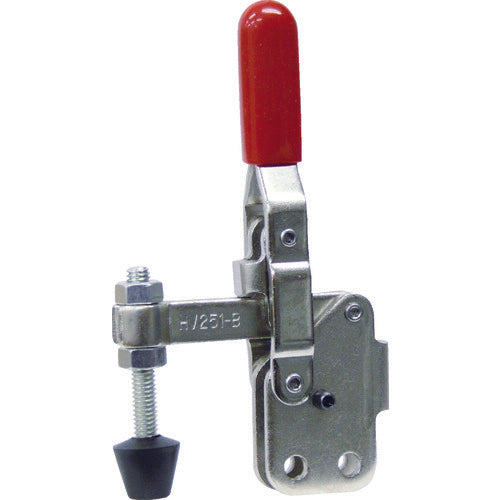

Kakuta Handle Vertical Toggle Clamp (Downward Pressing Type) No. HV251B Clamping Pressure 0.9kN KC-HV251B 1 pc

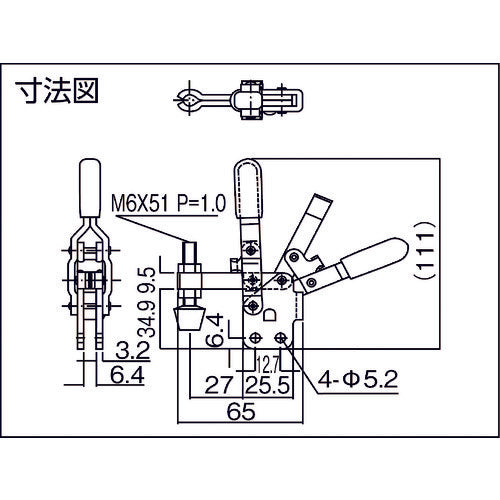

Catalog number: KC-HV251B Features: ●This clamp comes with a rubber-attached BT. Specifications: ●Total length (mm): 114 ●Tightening force (kN): 0.9 ●Attached bolt diameter: M6×37 (RBT-6) ●Clamp arm movement angle (°): 115 ●Handle operation angle (°): 65 ●Product marking: HV251-B ●Total height (mm): 111 ●Mounting pitch (mm): 12.7 ●Remarks: △ ●Downward pressing type ●Vertical handle ●Straight base Material/Finish: ●Steel (SPCC) ●Thread tip rubber: Nitrile rubber Set contents/Accessories: ●M6×37 Rubber-attached bolt (RBT-6) ●2 nuts Caution: ●The indicated tightening force is a guide. ●The tightening force becomes weaker toward the tip of the clamp arm. ●Shock, vibration, and internal pressure may cause damage, so please be careful. ●Be careful not to pinch your hand.
