Kakuta Handle Vertical Toggle Clamp (Downward Pressing Type) No. HV650 Clamping Pressure 3.4kN KC-HV650 1 pc

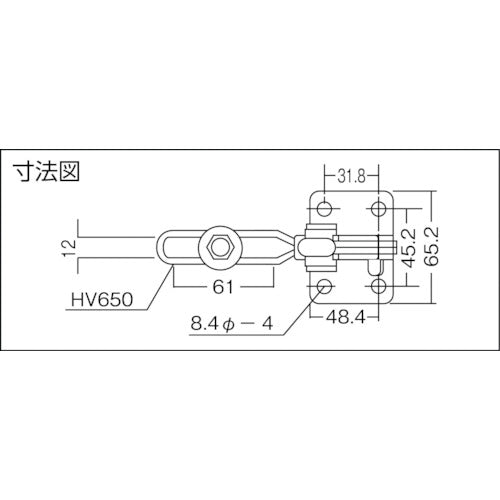

Catalog number: KC-HV650 Features: ●This clamp comes with a set of rubber-attached bolts. ●This clamp comes with a set of rubber-attached BTs. *HV150 excluded Specifications: ●Total length (mm): 200 ●Tightening pressure (kN): 3.4 ●Attached bolt diameter: M10 x 59 (RBT-10) ●Product marking: No. HV650 ●Mounting pitch (mm): 31.8 ●Downward pressing type ●Vertical handle ●Flange base Material/Finish: ●Steel (SPCC) ●Screw tip rubber: Nitrile rubber Caution: ●Items with an * in the summary require welding when installing the bolts (KC-HV150 uses nylon-finished bolts).
