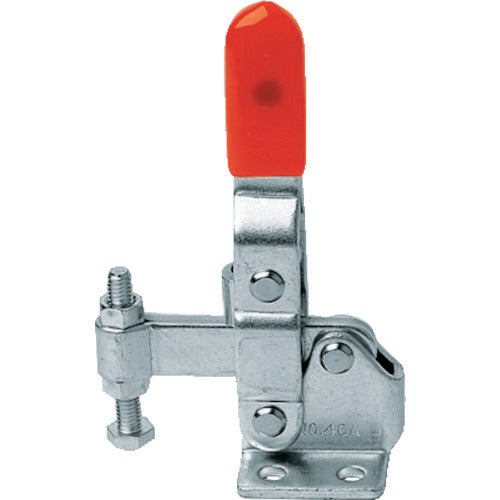

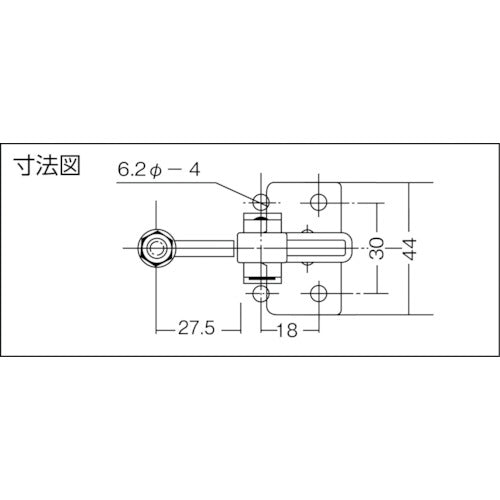

Catalog number: KC-40A Features: ● A clamp with a good balance between tightening force and size. Specifications: ● Total length (mm): 113 ● Tightening force (kN): 1.0 ● Attached bolt diameter: M6 x 40 ● Clamp arm movement angle (°): 95 ● Handle operation angle (°): 65 ● Product mark: No. 40A ● Mounting pitch (mm): 18.0 ● Downward pressing type ● Vertical handle type ● Flange base Material/Finish: ● Steel (SPCC)
