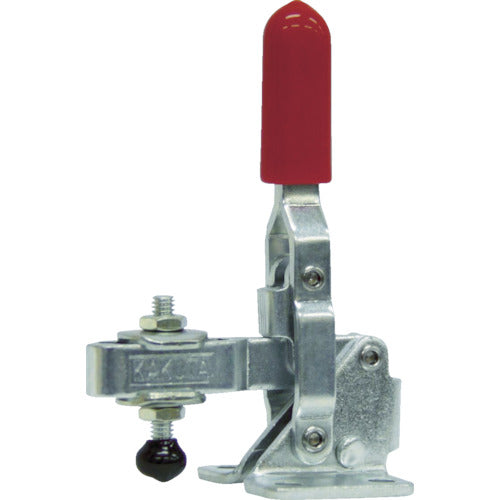

Kakuta Handle Vertical Toggle Clamp No. HV150 KC-HV150 1 pc

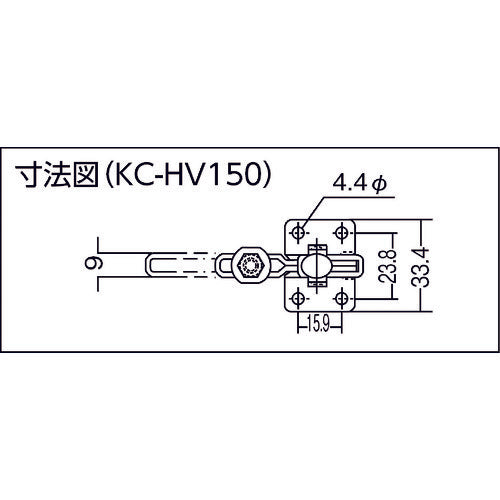

Catalog number: KC-HV150 Features: ●For light work. ●Uses nylon-finished bolts. Specifications: ●Total length (mm): 78 ●Tightening pressure (kN): 0.45 ●Attached bolt diameter: M4 x 28 (nylon-finished bolts) ●Clamp arm movement angle (°): 105 ●Handle operation angle (°): 60 ●Product marking: No. HV150 ●Mounting pitch (mm): 15.9 ●Downward pressure type ●Vertical handle type ●Flange base Material/Finish: ●Steel (SPCC) Caution: ●-2S is a hexagonal SUS bolt. ●The indicated tightening pressure is a guideline. ●The tightening pressure becomes weaker toward the tip of the clamp arm. ●Please note that impact, vibration, and internal pressure may cause damage. ●Be careful not to pinch your hand.
