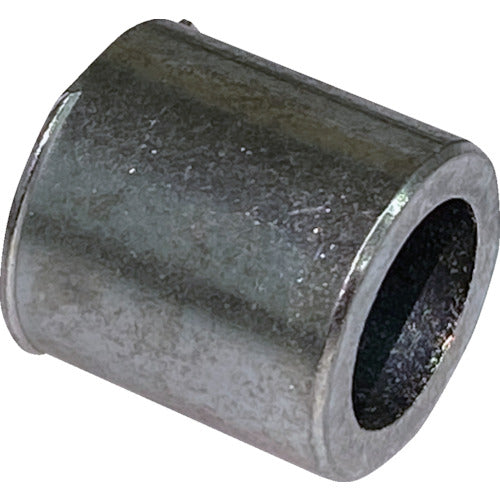

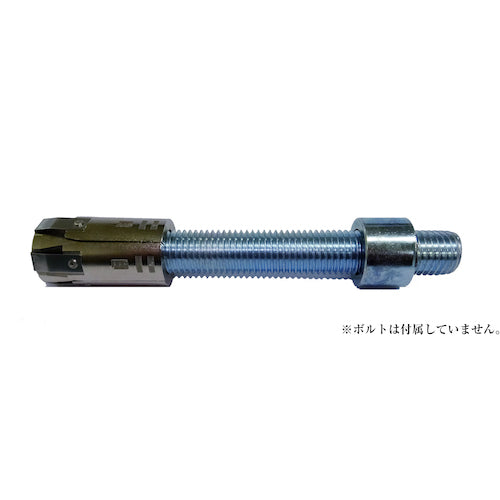

Towa AAP expansion anchor M16 slim bush included Z5M16S-B 1 S

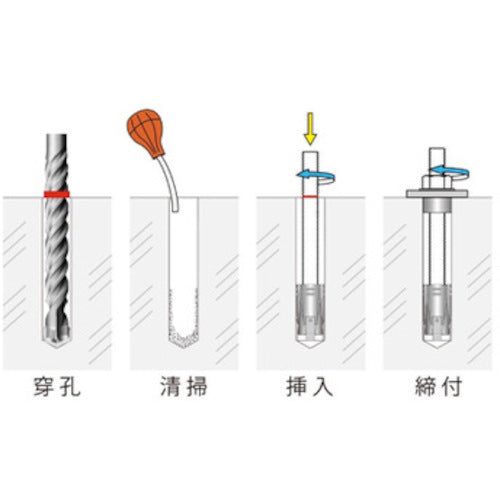

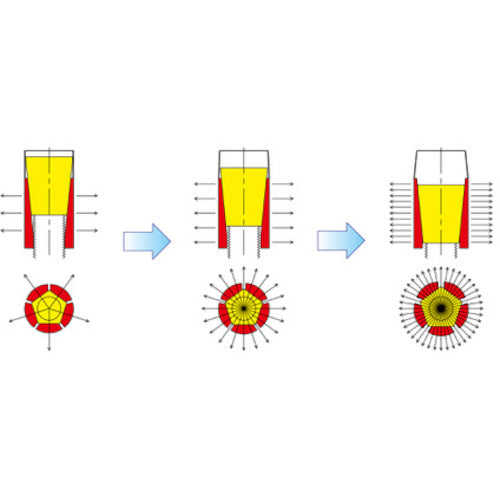

Catalog number: Z5M16S-B Features: ● It expands according to the condition of the drilled hole, so it adheres evenly to the hole wall and exerts holding power. ● Easy construction of drilling → cleaning → insertion → fastening of attachments reduces construction time and does not require special tools. ● Since the bolts can be removed after construction, it can be used for temporary construction, etc., and post-processing such as bolt removal is not required, which leads to a reduction in processes. ● One size can accommodate various drilling depths. ● Since construction is easy, there is no need to worry about insufficient strength due to human error. ● Since the drilling depth can be freely set according to the required strength, it can be used as a substitute for high-strength adhesive anchors. ● It can perform the same as normal even with ultra-high-strength concrete, which is difficult to expand with metal systems. Applications: ● For slope and incline reinforcement. ● For temporary construction such as scaffolding. ● For mounting fenders. ● For bridge pier reinforcement. ● For earthquake reinforcement. ● For fixing parts of exterior wall curing tables. Specifications: ●Thread designation: M16 ●Drill diameter (mm): 24.0 ●Standard installation torque (N・m): 106.0 ●Maximum tensile load (kN): 72.2 (at 160 mm) ●Maximum shear load (kN): 53.0 (at 160 mm) ●Embedded depth (mm): 80-160 ●Drilling depth (mm): 80.0-160.0 ●MLIT NETIS registered product "SK-160014-VR" ●Participates in the Resilience Japan Promotion Council's national land resilience initiative ●Japan Construction Post-Installed Anchor Association's construction method and product certification Certification number "No. 14-0023" ●New technology registered with Metropolitan Expressway Co., Ltd. ●Full member of the Railway ACT Research Group Material/Finish: ●Zinc alloy ●Zinc alloy Set contents/Accessories: ●Anchor body ●Bush Note: ●Bolts, nuts and washers are not included.
