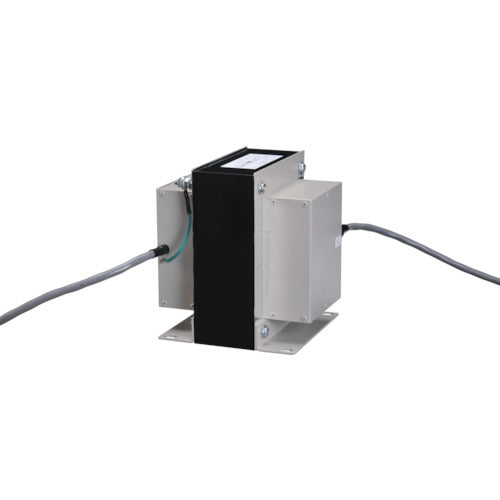

Toyosumi Power NR11 Noise Prevention Transformer 100V to 100V 1KVA NR11-01KE 1 unit

Catalog number: NR11-01KE Features: ●This is a noise prevention transformer that combines overwhelming noise attenuation power and reliable quality to remove noise that cannot be removed by a shielded isolation transformer. ●Removes noise components while leaving the required frequency band intact. ●Single-phase, double-wound type. ●For both 50/60Hz. ●Withstands AC3KV. ●Class E insulation. ●Electrostatic shield between the primary and secondary. ●Primary and secondary cables are shielded wires. Applications: ●Noise prevention. Specifications: ●Capacity (VA): 1K ●Width (mm): 143 ●Depth (mm): 180 ●Height (mm): 173 ●Secondary current (A): 10 ●Primary voltage (V): 100 ●Secondary voltage (V): 100 ●Primary and secondary cables: 2X16AWG + shielded wire (no terminal processing), L = approx. 500mm
