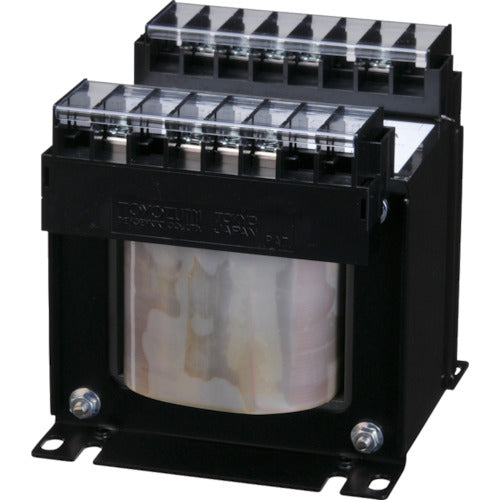

Toyosumi Power Supply SD21 Series 200V to 100V Isolation Transformer 30VA SD21-030A2 1 unit

Catalog number: SD21-030A2 Features: ● Single-phase, double-wound type. ● Can be used for both 50/60Hz. ● Withstands 1.5KV. ● Class A insulation. ● JIS C-6436 compliant. ● Shielded between PS. ● Suitable for preventing power supply noise with a 200V to 100V isolation transformer. Specifications: ● Capacity (VA): 30 ● Secondary voltage (V): 100-110-115 ● Secondary current (A): 0.3 ● Primary voltage (V): 200-220-240 ● Connection type: Terminal block ● Terminal screw: M3.5 ● External dimensions Width x Depth x Height (mm): 68X92X86 ● Recommended mounting dimensions (mm): 45X80 ● Recommended mounting screw: M4
