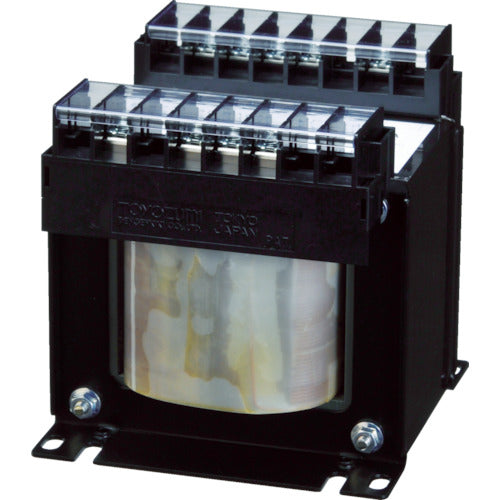

Toyosumi Power Supply SD21 Series 200V to 100V Isolation Transformer 500VA SD21-500A2 1 unit

Catalog number: SD21-500A2 Features: ● Single-phase, double-wound type. ● Can be used for both 50/60Hz. ● Withstands AC 1.5kV. ● JIS C-6436 compliant. ● Shielded between PS. ● Terminal block connection. ● Suitable for preventing power supply noise with a 200V to 100V isolation transformer. ● Class A insulation. Applications: ● Drops 200V to 100V. Specifications: ● Input voltage (V): 200-220-240 ● Output voltage (V): 100-110-115 ● Capacity (VA): 500 ● Capacity (kVA): 0.5 ● Width (mm): 136 ● Depth (mm): 111 ● Height (mm): 135 ● Terminal screw: M4 ● Insulation type: A ● Recommended mounting dimensions (mm): 122 x 82 ● Recommended mounting screw: M6 ● Secondary current (A): 5
