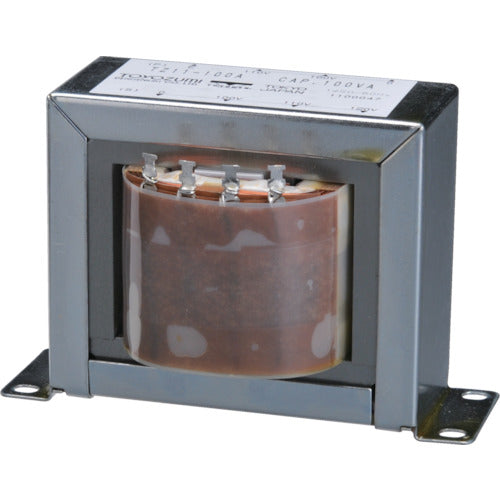

Toyosumi Power Supply TZ11 Series 100V to 100V Double-Wound Isolation Transformer 100VA TZ11-100A 1 unit

Catalog number: TZ11-100A Features: ● Single-phase, double-wound type. ● Can be used at both 50/60Hz. ● Withstands 1.5KV. ● Class A insulation. ● JIS C-6436 compliant. ● Comes with electrostatic shield between primary and secondary. ● 100V to 100V isolation transformer. ● Ideal for reducing power supply noise and preventing leakage current in equipment. Applications: ● Reducing power supply noise. ● Preventing leakage current in equipment. Specifications: ● Capacity (VA): 100 ● Secondary current (A): 1 ● Primary voltage: 100-110V ● Secondary voltage: 100-110-120V ● Connection type: Lug terminal ● External dimensions Width x Depth x Height (mm): 116XDepth x Height (mm): 116X75X76 ● Recommended mounting dimensions: 103 x 25mm ● Recommended mounting screws: M4
