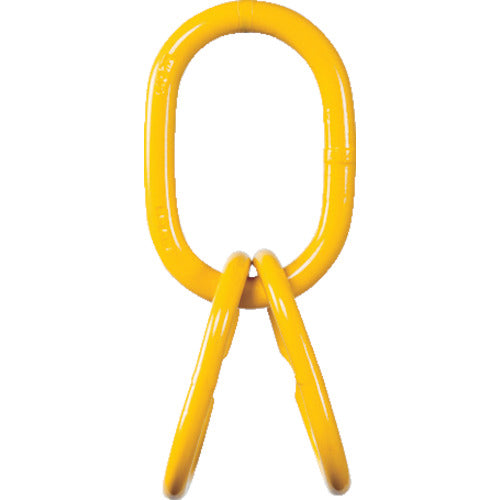

ZOJIRUSHI Master Link (with intermediate link) 4.1t TG-08 1 piece

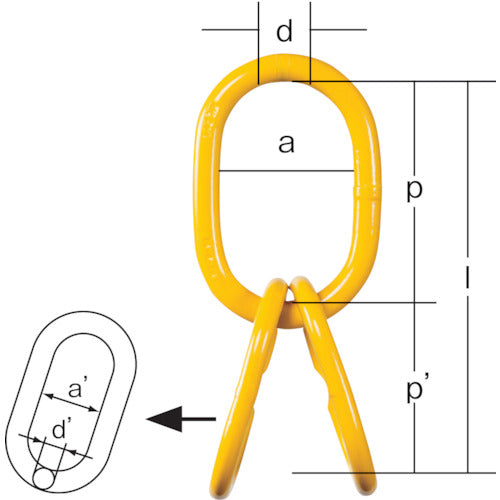

Catalogue number: TG-08 Features: ● Master link with sub-ring can be used for 3-strand or 4-strand suspension. Applications: ● As a master link for 3-strand or 4-strand suspension. Specifications: ● Basic load capacity (t): 4.1 ● Suitable chain wire diameter (mm): 7.1 ● Dimensions (mm) d: 23 ● Dimensions (mm) l: 300 ● Dimensions (mm) p: 160 ● Breaking load (kN): 205 ● Dimensions (mm) p': 140 ● Dimensions (mm) a: 110 ● Dimensions (mm) a': 80 ● Dimensions (mm) d': 16.5 ● Sub-ring: Yes ● Dimensions (mm) p': 140 Material/Finish: ● Steel
