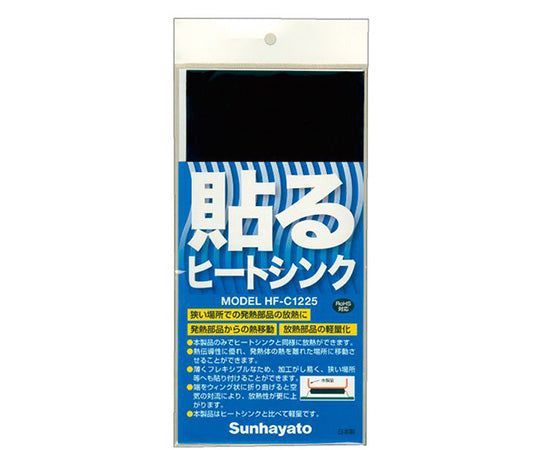

Stick-on heat sink HF-C1225 1 piece

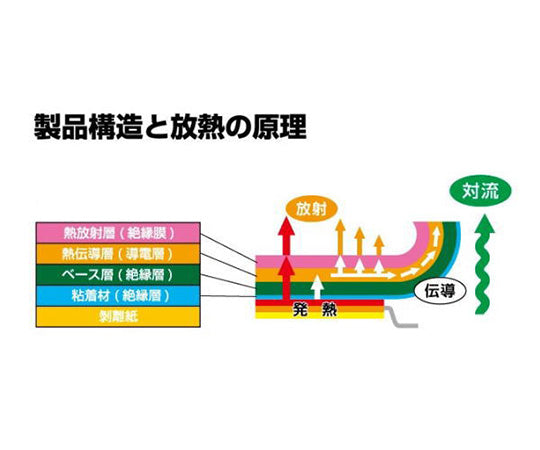

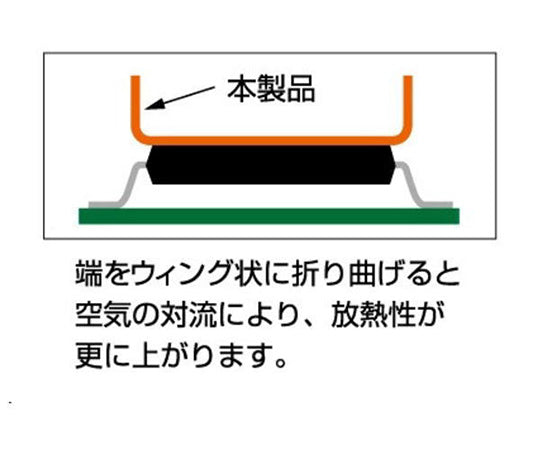

[Product Features] It has excellent thermal conductivity and can transfer heat generated by a heating element to a distant location. Because it is thin and flexible, it is easy to process and can be attached even in narrow spaces. It is lighter than metal heat sinks. Both the front surface (black) and the adhesive surface are insulated, so it can be directly attached to the metal parts of the parts. *The cut surface is not insulated. [Main specifications] Size: 120 x 250 mm Thickness: 0.13mm *Excluding release agent Color: Black (surface) Operating environment *Temperature after adhesion stabilizes...-25 to 120℃ Humidity: 0 to 85% *Please perform the bonding at room temperature. Thermal resistance 26.6K/W (test piece 30x30mm/2W) 23.3K/W (test piece 50x50mm/2W) Flame retardant UL94 V-0 (measurement conditions UL94) [Note] This product is intended for indoor use. Please conduct sufficient verification when using in high temperature or high humidity environments. If the surface is uneven or significantly distorted, it will peel off easily. Store in a cool, dark place away from direct sunlight and ultraviolet (UV) rays.
