Infrared thermography RFS 1 piece
Infrared thermography RFS 1 piece
Regular price
¥118,800
Regular price
Sale price
¥118,800
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Equipped with a high-resolution infrared sensor, it is capable of high resolution, high frame rate, and a wide range of measurements up to 550°C.
The captured still images retain temperature information, so you can change the display mode after shooting, perform corrections, temperature measurements, and other editing.
In addition to changing the emissivity correction (0.00 to 1.00), it also has a numerical correction function for ambient temperature, reflected temperature, atmospheric humidity, delta temperature, and distance.

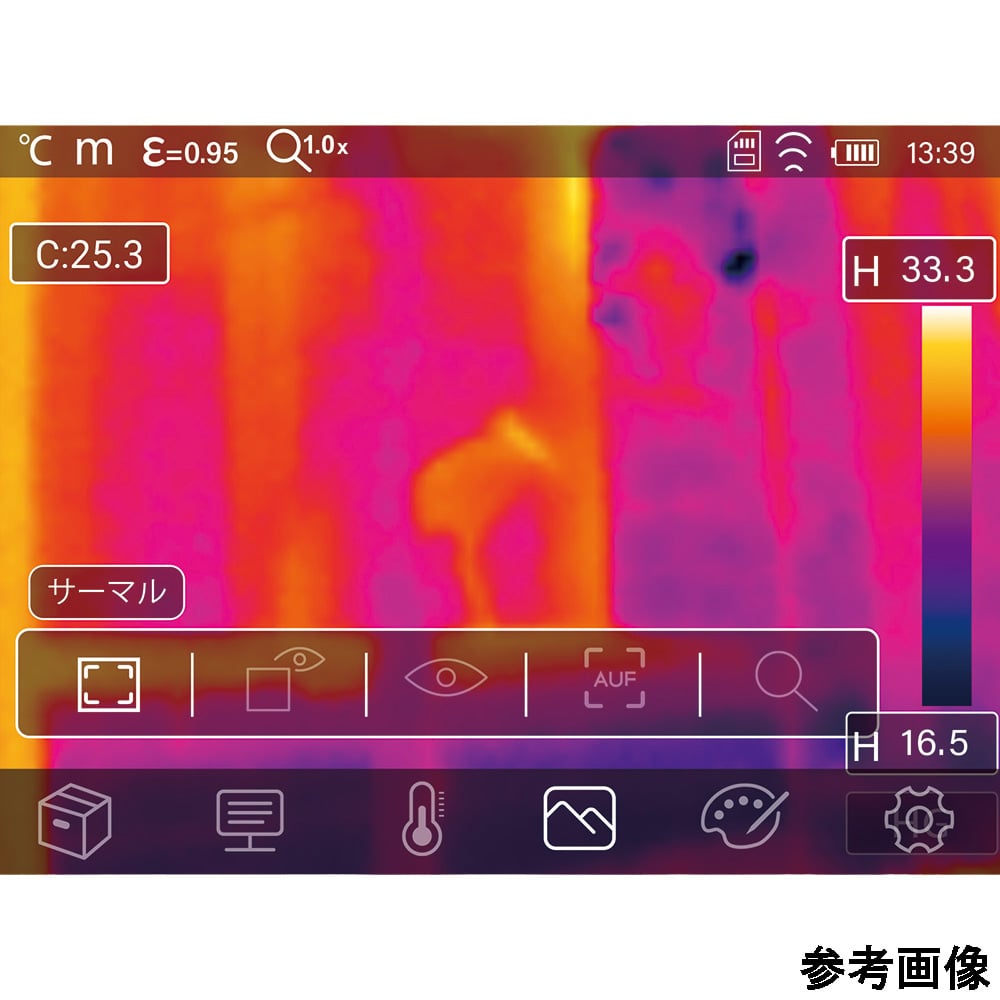

The touch panel operation allows you to intuitively select the location where you want to check the temperature.
The app is compatible with smartphones and PCs, and allows remote control and screen sharing via PC. Resolution: 120 x 90 pixels
Resolution: 0.1°C
Temperature measurement range: -20 to +150°C, 0 to +550°C (minimum display unit 0.1°C)
Temperature measurement accuracy: ±3%rdg or ±3℃, whichever is greater
Emissivity correction: 0.00 to 1.00 (variable)
Measurement wavelength: 8 to 14 μm
Viewing angle: 50° x 37°
Fixed minimum focusing distance: 0.5m
Frame rate: 50Hz
Display: 3.5-inch color LCD (640 x 480 capacitive touch panel)
Memory: 3.4GB built-in storage, 32GB microSD card (included)
Image format: Still image/HIR (thermal image format), JPEG (640 x 480 pixels)
Video: MP4 (480x360 pixels)
Power supply: 3.7V lithium rechargeable battery (1500mAh), USB connection (image transfer/battery charging)
Dust and water resistance: IP54
Size: Approx. 129 x 22 x 87 mm
Weight: Approx. 200g
Accessories: Carrying case, USB cable, strap, micro SD card (32GB), SD card adapter, SD card case
