佐藤計量器製作所

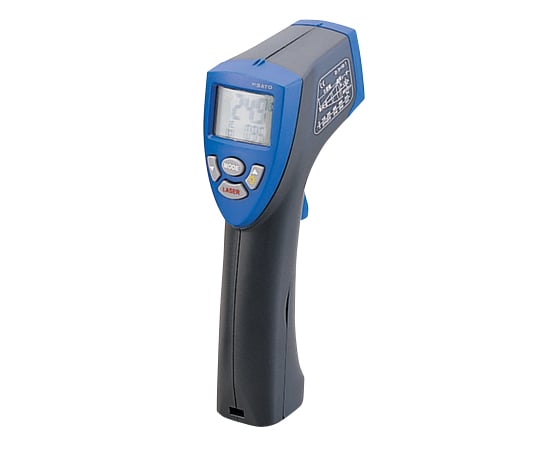

Infrared thermometer SK-8940 1 unit
Infrared thermometer SK-8940 1 unit
Regular price
¥19,360
Regular price
Sale price
¥19,360
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It can quickly measure surface temperatures.
The gun-type grip allows for one-handed measurement.
Wide temperature measurement range. Supports a wide range of temperature measurement from -40℃ to 500℃.
The distance factor (D:S) is 10:1 (D: measurement distance, S: measurement area diameter), and the emissivity can be set in 0.01 units.
This product is a Class 2 laser product and comes with the PSC mark.
It has an LCD backlight function that allows you to read the temperature reading even in dark places.
Comes with a single-point laser marker that lets you see the measurement point at a glance.
The temperature reading will be automatically held (for about 10 seconds).
Equipped with auto power off function. If the measurement key is not pressed for 10 seconds or more, the auto power off function will activate and the power will be turned off automatically. This prevents battery consumption due to forgetting to turn off the power.
Comes with a sensor cap. It prevents dust and foreign objects from entering the measurement window. It also prevents accidental laser irradiation when not in use, making it safe. Measurement range (℃): -40 to +500℃
Resolution (℃): −40 to +99.9/0.1, +100 to/1
Accuracy: -19.9 to 450°C / ±2% rdg or ±2°C, whichever is greater, -40 to -20°C, 451 to 500°C / ±4% rdg or ±4°C, whichever is greater
★ (Conditions) Measurement environment temperature: 23℃±5℃, emissivity: 0.95
Repeatability: ±1℃
Emissivity: 0.30 to 1.00 (0.01 steps)
Distance factor: D:S = 10:1
Response time: 1 second
Size (mm): 45 x 80 x 157
Weight (g): Approx. 151 (including batteries)
Power supply: 2 x 006P (9V) dry batteries (for testing + replacement included)
Hold: Yes
Functions: Backlight, auto power off function
Aiming: Laser marker (Class II), Wavelength: 650 nm, Output: 1 mW or less Compliant with the Consumer Product Safety Act for portable laser application devices (PSC mark included)
Operating temperature and humidity range: 0 to 50°C, 80% rh or less (no condensation) Battery life (at room temperature):
★Approx. 5 hours (when both laser marker and backlight are ON)
★Approx. 12 hours (with laser marker ON and backlight OFF)
★Approx. 8 hours (with laser marker OFF and backlight ON)
★Approx. 55 hours (when both laser marker and backlight are OFF)
Accessories: Hand strap (with sensor cap), leather case, 2 x 9V 6F22 (006P) batteries (one is pre-installed in the unit at the factory)
Code number: 8266-00
*Please note that water vapor, dust, smoke, etc. can interfere with accurate temperature measurement.
