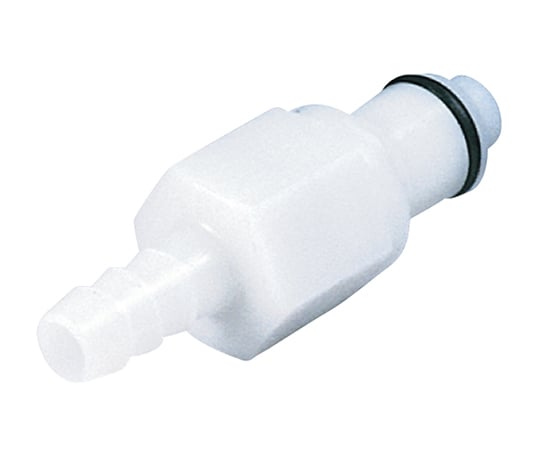

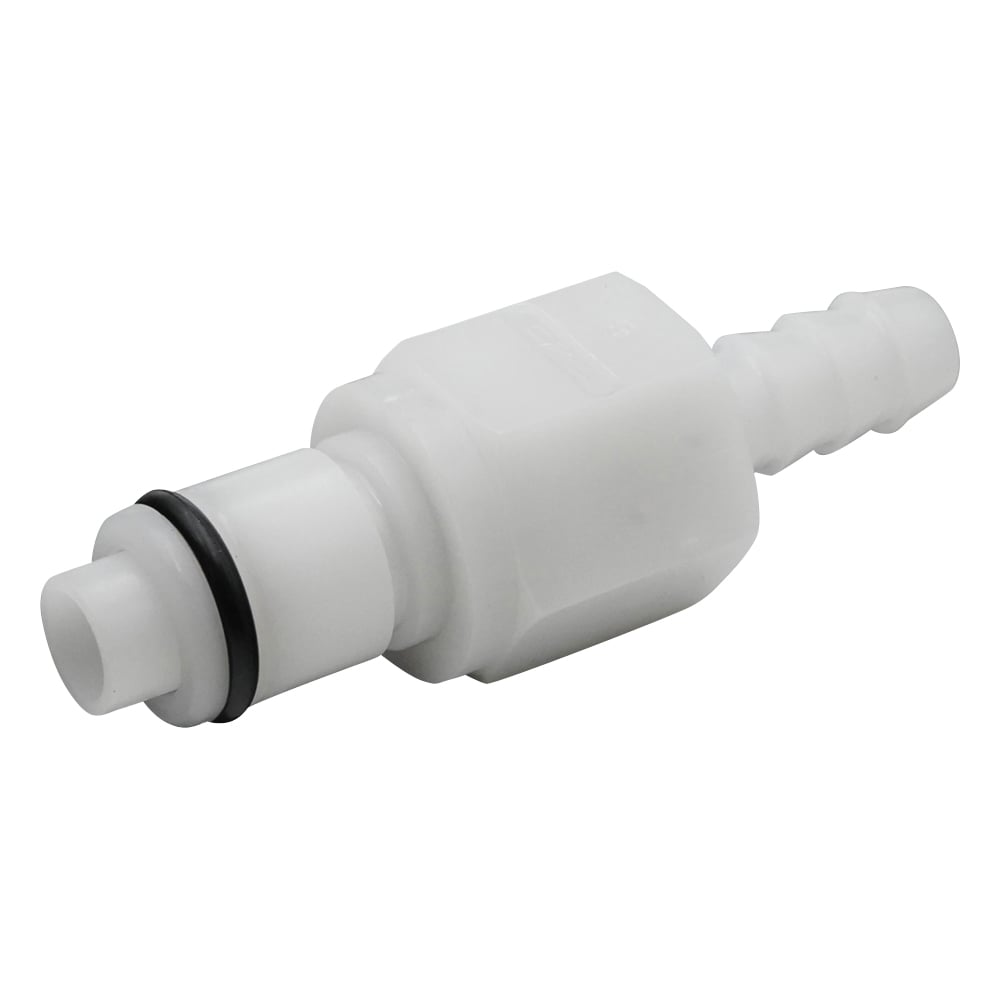

Made of injection molded acetal, it is highly durable and can be used with a wide range of fluids. Specifications: Insert
Type: Inline
Tube size inner diameter: 6.4mm (1/4 inch)
Material: Body/valve: acetal, latch/external spring/pin: stainless steel, valve spring: SUS316, O-ring: NBR (nitrile rubber)
Operating temperature range: -40 to +82°C
Operating pressure: Vacuum to 0.84MPa
Acetal with valve
