Omi Hexagonal 6.35 Groove 9, 13 Compatible Insert Hexagon Bit H2 Total Length 150 Step φ4 x 30 V32X-H2-150-4 10 pieces

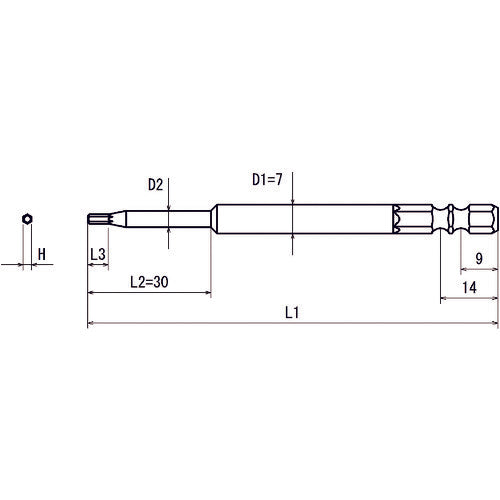

Catalogue number: V32X-H2-150-4 Features: ● A universal groove that can be attached to two types of drivers with different ball positions. ● The use of special steel increases toughness and improves durability. ● Special products can also be manufactured in small lots. Applications: ● Hexagonal bits Specifications: ● Opposite sides (mm): 2 ● Total length (mm): 150 ● Type: Stepped ● Insert: 6.35mm (hexagonal) ● Tip shape: Hexagonal (hexagonal) ● Groove position: 9mm, 14 ● Step diameter (D2): φ4 ● Step length (L2) (mm): 30 ● Hexagonal section length (L3) (mm): 5 Material/Finish: ● Special tool steel
