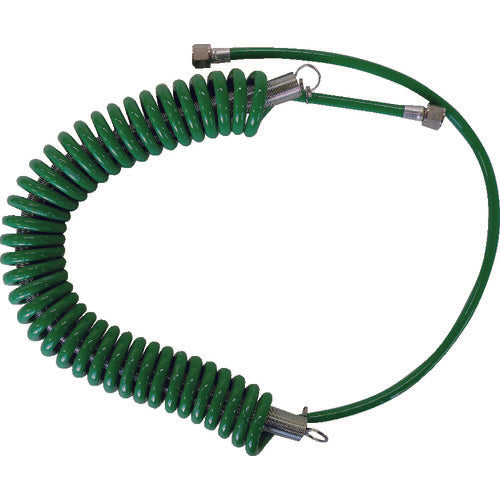

Kinki Screw Air Hose with Spring, 6m Range, KS-7SP, 1 Piece
Kinki Screw Air Hose with Spring, 6m Range, KS-7SP, 1 Piece
Regular price
¥5,063
Regular price
Sale price
¥5,063
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: KS-7SP Features: ● Type 7 coil hose with spring. Applications: ● Combination with air tools. Specifications: ● Coil diameter (mm): 40 ● Color: Green ● Hose inner diameter x outer diameter (mm): 5 x 8 ● Usage range (m): 6 ● Total length (mm): 1165 ● Coil length (mm): 520 ● Hose mounting port: G1/4 ● Maximum usage dimension (m): 6.0 ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Maximum operating pressure (MPa): 0.8 ● Operating temperature range (℃): -40 to 80 ● Fluid used: Compressed air ● Coil hose: 5 x 8 mm (inner diameter x outer diameter) ● Operating temperature range: -20 to 80℃ Materials/Finish: ● Polyurethane, steel, brass Caution: ● Not compatible with high pressure plugs and sockets
