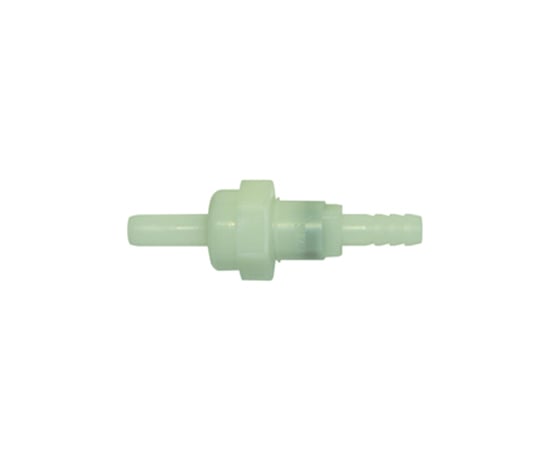

Polyacetal check valve 1 bag (2 pieces) 001CV 1 bag (2 pieces)
Polyacetal check valve 1 bag (2 pieces) 001CV 1 bag (2 pieces)
Regular price
¥2,794
Regular price
Sale price
¥2,794
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Prevents backflow of liquids and gases. Model number: 001CV
Material: Body: POM (polyacetal), Internal spring/ball: Stainless steel (SUS304), Packing: NBR (nitrile rubber)
Minimum opening pressure: 0.01MPa (10KPa) or less
Fitting dimensions: Outer diameter: φ6.4mm, Inner diameter: φ4mm
Fitting shape: Inlet side/Nipple, Outlet side/Straight
Heat resistance: approx. 90℃
Overall length x joint length: 56 x 15.5 mm
Quantity: 2 pieces
RoHS2 (EU)2015/863 compliant [About RoHS]
