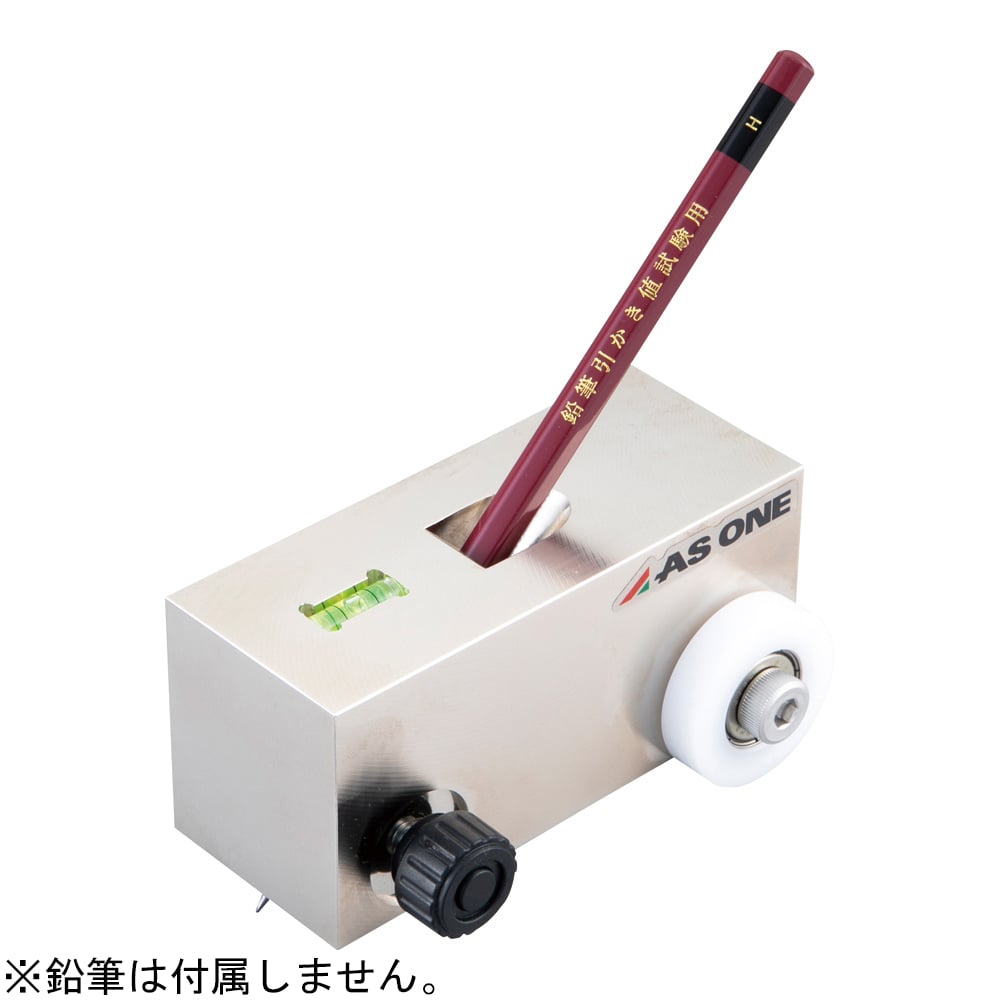

Pencil scratch hardness tester PHT-45 1 piece

Complies with JIS K 5600. The pencil is held at a 45 degree angle and a load of 750g is applied to the tip, and the hardness and adhesive strength are measured by the hardness at which it scratches when caught. This is a testing machine that measures the hardness of coatings. The main body is equipped with a spirit level. Dimensions (mm): 74 x 110 x 55 Weight (kg): Approx. 1.9 Quantity: 1 piece Material: Surface treatment S45C (electroless nickel plating) Pencil tip load: 750±10g Pencil angle: 45±1° Spirit level (attached to the main unit) *Pencils are not included.
