Nagasawa RE TXS-B14W-AB Display Lock NB14W-005 1 pc

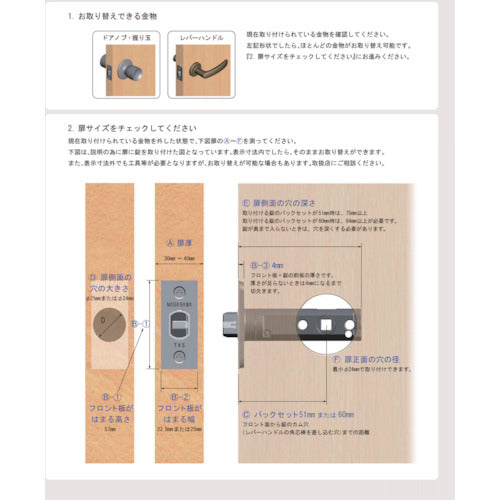

Catalog number: NB14W-005 Features: ● Not only can it be installed, but it can also be used to replace existing doorknobs and lever handles. Uses: ● As a replacement lever handle for indoor use. Specifications: ● Color: Antique brass ● Backset (mm): 60 ● Case depth (mm): 84 ● Suitable door thickness (mm): 30-40 ● Lock type: Indicator lock ● Type: Tubular lock ● Round seat diameter (mm): 71.4 ● Front panel: 2 pieces (57 mm high, 22.5 mm and 25 mm wide) (included) ● Front panel + lock front panel thickness (mm): 4 ● Adjustment ring: Hole diameter 21 mm or 24 mm cut-out compatible (included) ● Door front hole diameter (mm): Minimum 24 ● Lever operation angle: 25 degrees ● Applicable door weight: 20 kg or less Material/Finish: ● Zinc alloy (lever handle)
