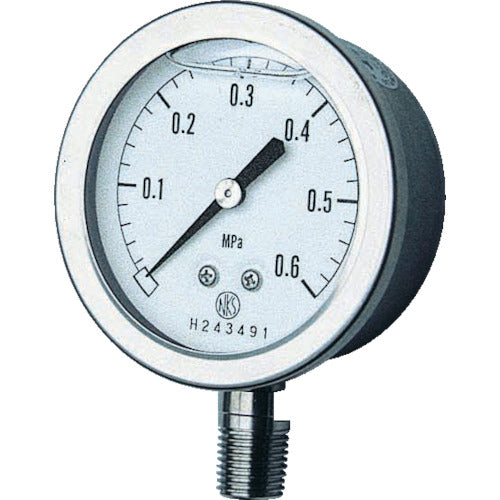

Nagano Glycerin-filled pressure gauge, A-frame vertical type, Φ60, minimum scale 0.010, GV50-173-0.3MP, 1 unit

Catalog number: GV50-173-0.3MP Features: ● Excellent corrosion resistance and atmospheric resistance due to stainless steel wetted parts and case material. ● Highly durable pressure gauge suitable for use under vibration that shortens the instrument life. Specifications: ● Pressure range (MPa): 0.0 to 0.3 ● Minimum scale (MPa): 0.010 ● Precision: ±1.5% FS ● Connection size: R1/4 ● Size (mm): 60 ● Case shape: A ● Size: 60mm Material/Finish: ● Bourdon tube: Stainless steel (SUS316) ● Stock: Stainless steel (SUS316) Note: ● Please check the thread size, thread shape (G thread or R thread), and pressure range (MPa) before ordering.
