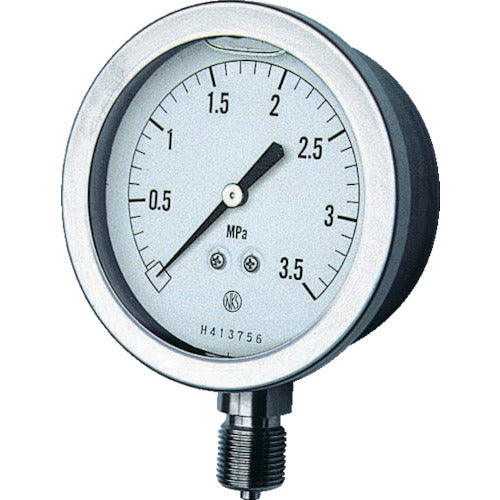

Nagano Glycerin-filled pressure gauge, A-frame vertical type, Φ75, minimum scale 0.010, GV51-133-0.2MP, 1 unit

Catalog number: GV51-133-0.2MP Features: ● Excellent corrosion resistance and atmospheric resistance due to stainless steel wetted parts and case material. ● This pressure gauge is designed for use under vibration, with the internal mechanism immersed in the filling liquid to suppress vibration of the moving parts and prevent wear on the internal link mechanism, making maintenance easier. ● Highly durable pressure gauge suitable for use under vibration that shortens the instrument's lifespan. Specifications: ● Pressure range (MPa): 0 to 0.2 ● Minimum scale (MPa): 0.010 ● Precision: ±1.5% FS ● Connection size: G3/8B ● Size (mm): 75 ● Case shape: A ● Size: 75mm Material/Finish: ● Bourdon tube: Stainless steel (SUS316) ● Stock: Stainless steel (SUS316) Note: ● Please check the thread size, thread shape (G thread or R thread), and pressure range (MPa) before ordering.
