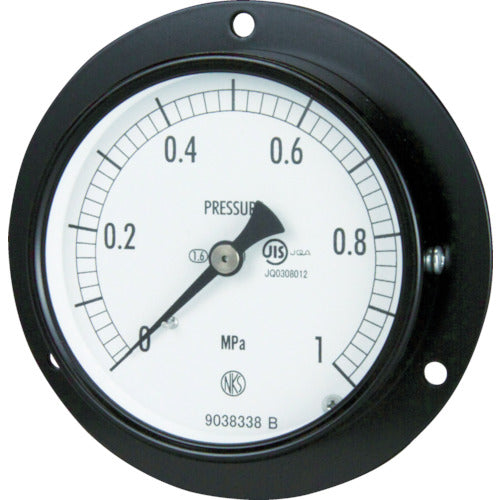

Nagano Standard pressure gauge D frame embedded type Φ75 Minimum scale 0.002 AC15-231-0MP 1 unit

Catalog number: AC15-231-0MP Features: ●This pressure gauge is designed to transmit the elastic deformation (movement) of the Bourdon tube to the pointer, and its simple structure makes it easy to handle. ●Since it is an embedded type, the pressure inlet is installed on the back. ●It is a JIS B 7505-1 standard product. Specifications: ●Pressure range (MPa): -0.1 to 0.00 (vacuum gauge) ●Minimum scale (MPa): 0.002 ●Accuracy: ±1.6% FS ●Case shape: D ●Connection size: G3/8B ●Size (mm): 75 ●Size (mm): 75 Material/Finish: ●Bourdon tube: brass, stainless steel (SUS316) for pressure ranges of 4MPa or more ●Stud: brass Note: ●Please check the thread size, thread shape (G thread or R thread), and pressure range (MPa) before ordering.
